ACU-RITE 3500i 263
8.1 Draw
Draw Options

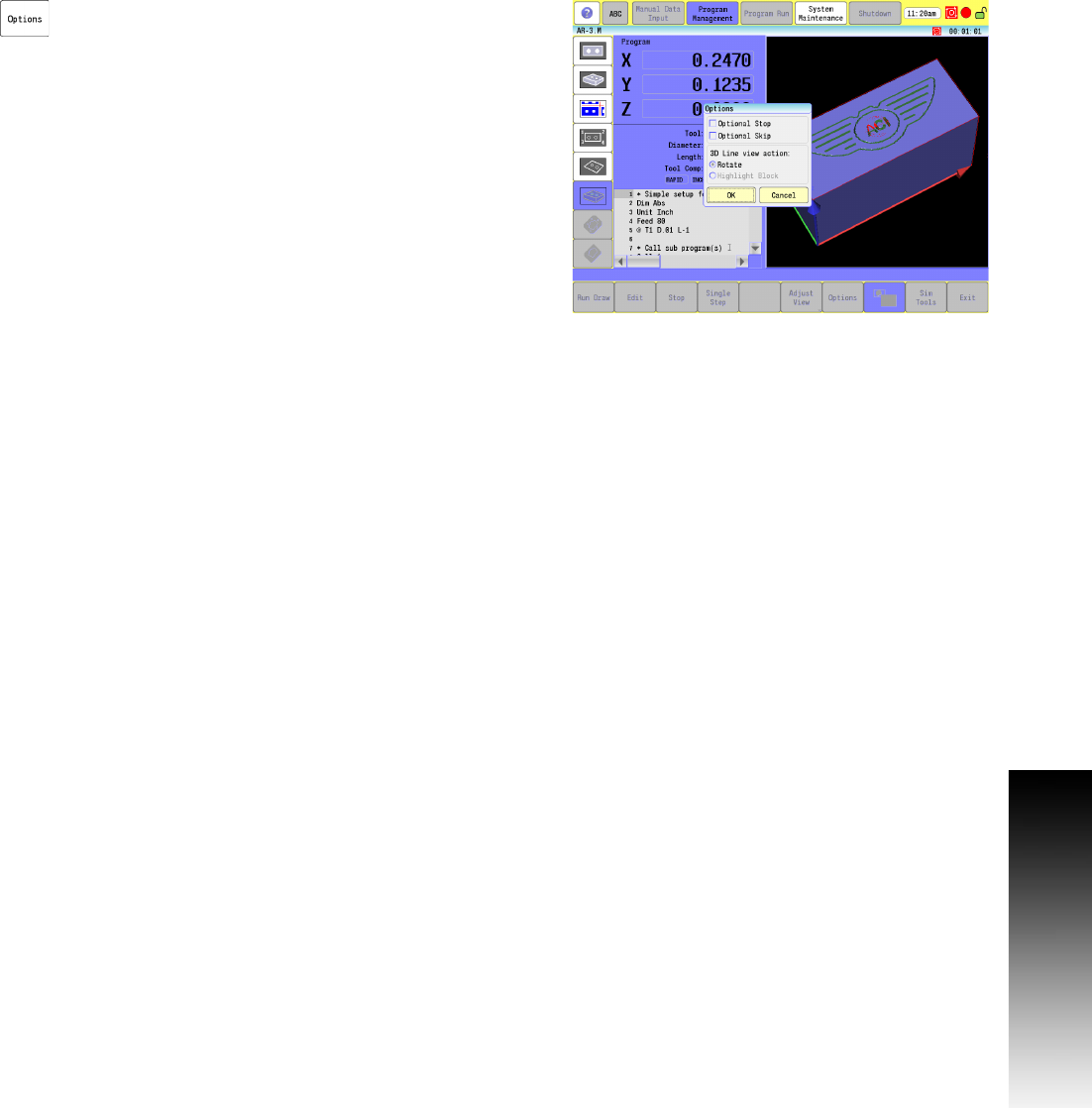

Touch the Options button to activate the Options
Dialogue.
The Options dialogue functions the same as in Programing. In Draw,
blocks of the program can be marked to stop, or be skipped. When
these are selected, the Stop or Skip feature is activated.
The Rotate feature functions in the same way, when selected, Rotate
is activated.
Highlight Block is available when 2D, or 3D Line view has been
selected. When activated, if a program block is selected, the lines in
the drawing view are highlighted (by changing color) for that block. If
a line in the drawing view is selected, then the block in the program is
highlighted.
