ACU-RITE 3500i 261

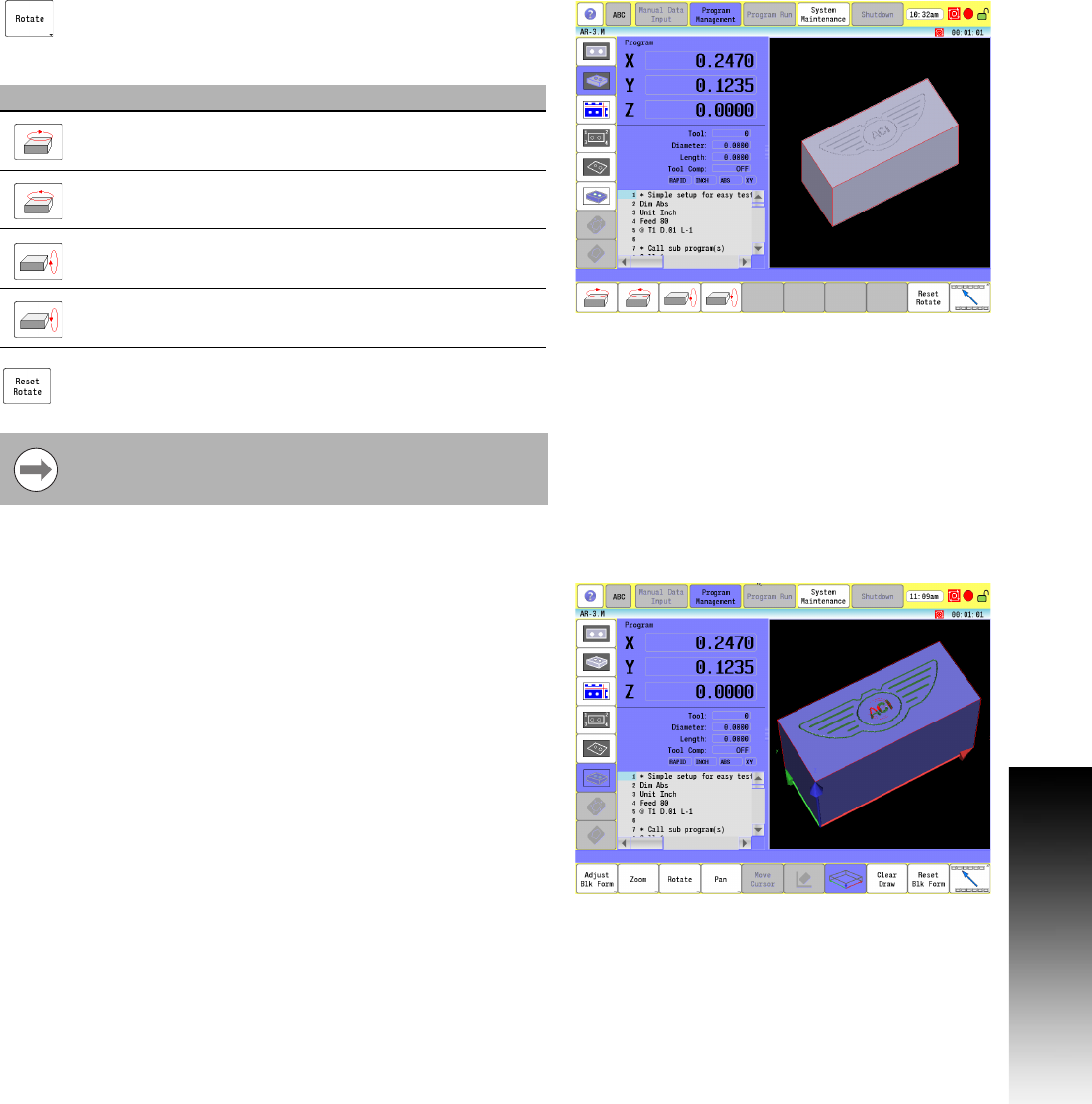

8.1 Draw
Rotate Drawing View
Touch the Rotate button to access the directional
rotate buttons. The display can also be rotated by
touching the screen, and dragging.
Touch the Reset Rotate button to return to the default
display orientation.
Pan Drawing View
When the 2D, or 3D Wire Frame buttons, or 3D Shaded View button
is selected, the Pan button is activated.
Button Function
Rotate CW rotates the part to the right incrementally
with each touch of the button.
Rotate CCW rotates the part to the left incrementally
with each touch of the button.
Rotate Backward rotates the part up incrementally
with each touch of the button.
Rotate Forward rotates the part down incrementally
with each touch of the button.
The drawing view can also be rotated by touching, and
dragging on the touch screen from anywhere in Draw.
