ACU-RITE 3500i 143
7.1 Explaining Basic Cycles
System Data
The SysData command can be used in a program to override system
configuration data during the program execution. The new value is
only in effect during the program run, and reverts back to the original
value after program completion. This is an advanced feature that
should be used with extreme caution, and only when absolutely
necessary.

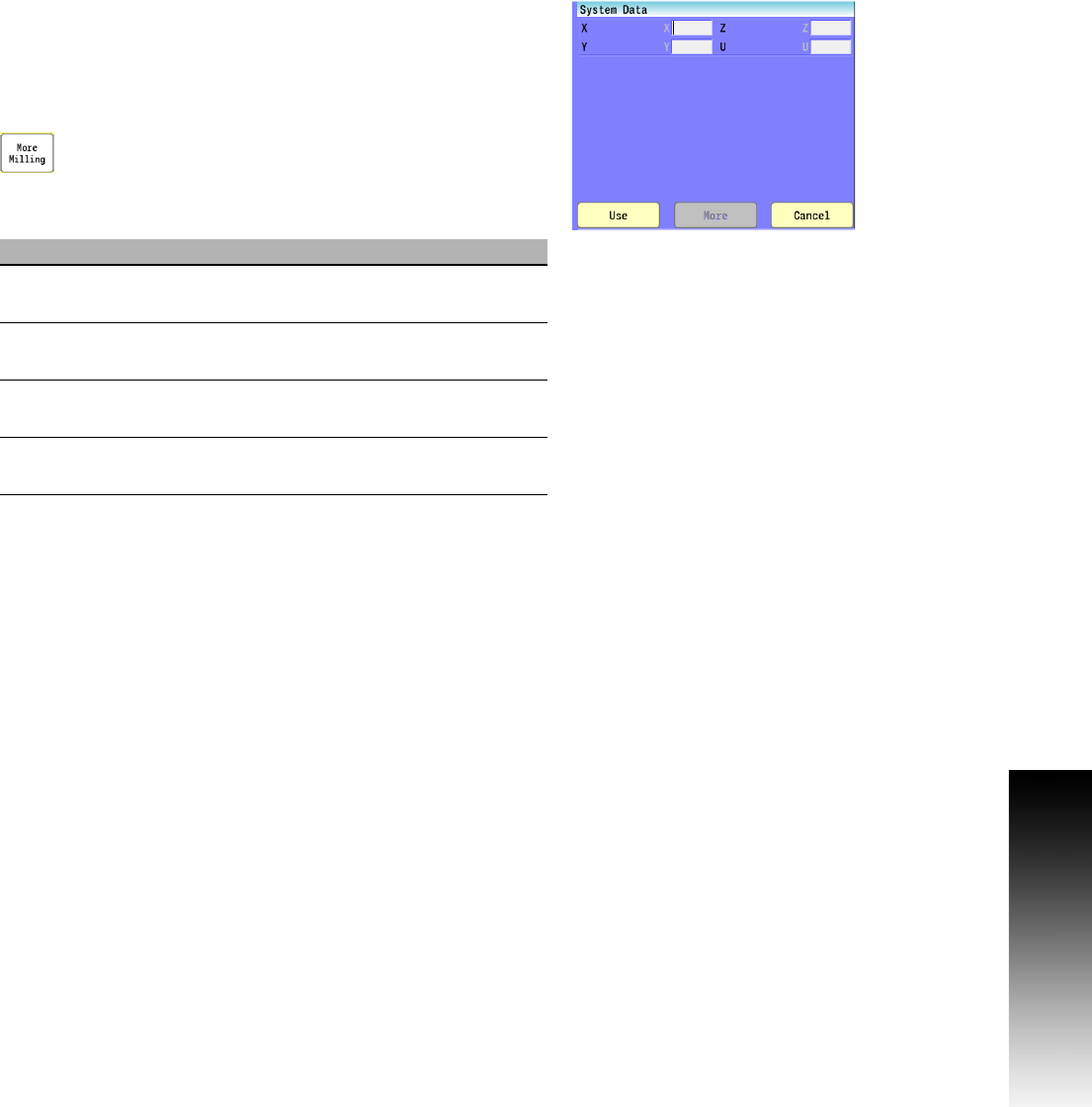

Select the More Milling button, and then "SysData"
from the pop-up menu.
Conversational format: SysData
G-code format: G350
All parameters are optional.
Field Code Description
X X The group-id of the configuration parameter
to override.
Y Y The data-number of the configuration
parameter to override.
Z Z The new value of the configuration
parameter to be used.
U U The index of the configuration parameter to
override (if an index exists).
