ACU-RITE 3500i 113
6.1 Conversational Programming

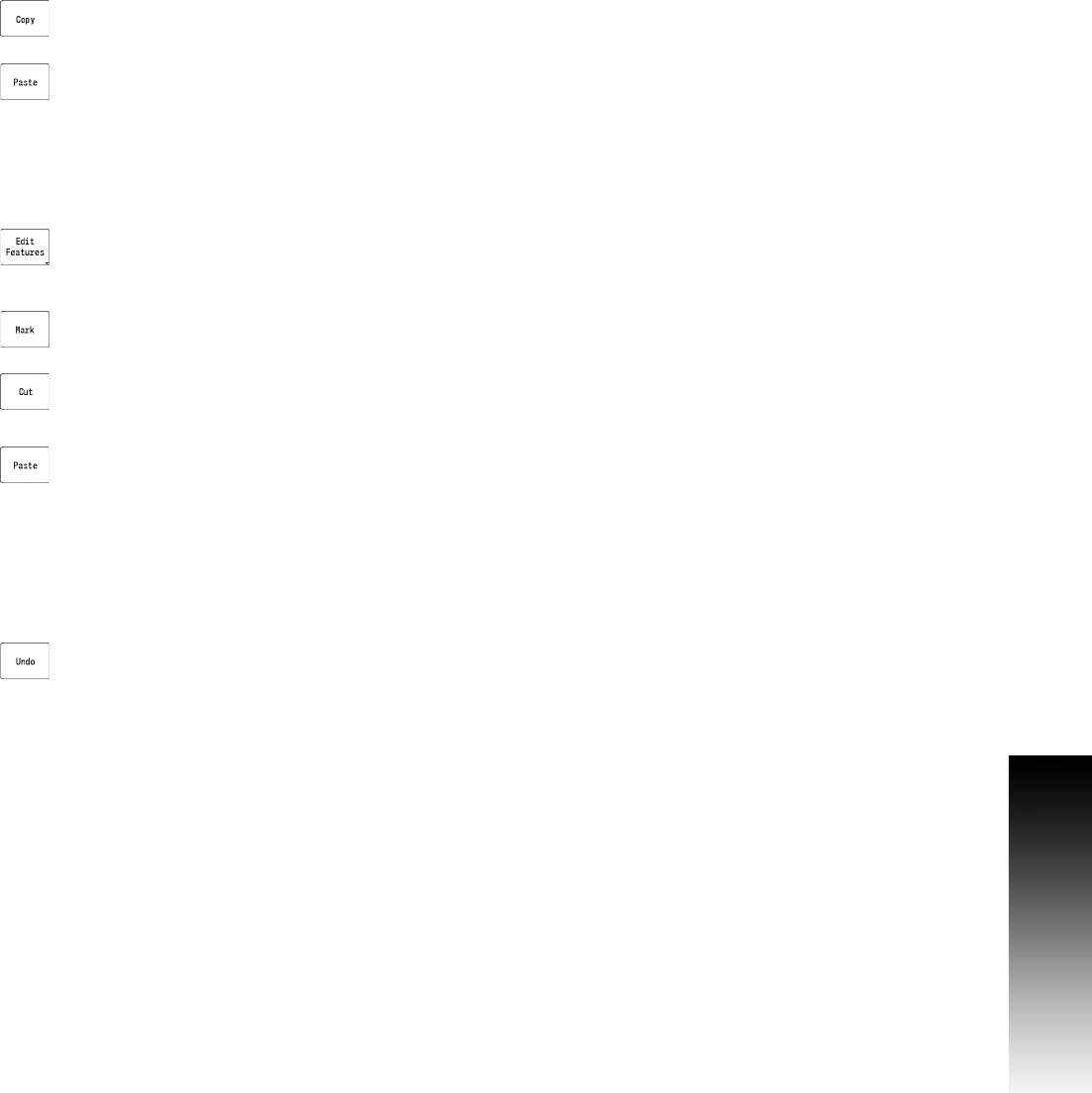

Copy/Paste Blocks in a program
Multiple blocks can be copied, and inserted in the same way.
Highlight the selected blocks to copy, and touch the
Copy button.
Place the cursor at the beginning of a block where the
copied blocks are to be inserted, and touch the Paste
button.
The selected blocks have now been added in at that location.
Moving Blocks in a program
Moving one or more blocks is accomplished by using the Cut button.
In Edit Mode, place the cursor at the beginning of the
first of one, or more blocks to be moved, then touch
the Edit Features button.
Touch the Mark button. Use the Arrow keys to mark
additional blocks below, or above the cursor location.
Touch the Cut button to remove the block, or blocks
selected, and place them onto the clipboard.
Move the cursor to the beginning of the block line
where the cut blocks are to be inserted before, touch
the Paste button to move the selected blocks to the
new location.
Canceling edits to a program block:
Using the Undo button sequentially steps backwards undoing all
previous steps.
Touch the Undo button to undo one or more recent
actions taken in sequential reverse order.
Continue touching the Undo button will continue to remove recent
actions taken in sequential reverse order.
