110 6 Conversational Editing
6.1 Conversational Programming
Other Cycles Button
Select the Other Cycles button to display additional
milling features in the pop-up menu.
Other Cycles
Face
Hole
Rect Profile
Circ Profile
Linear Engraving
Arc Engraving
Mill Cycle
EndMill Cycle
RMS
Loop
Tool Probing
Spindle Probing
Tool Probing Menu includes: Length/Diameter, Length Special,
Diameter Special, Break/Wear, and Probe Calibration.
Spindle Probing Menu includes: Edge Find, Corner Out, Corner In,
In/Out Boss, In/Out Web, Probe Move, Skew Compensation, and
Probe Calibration.

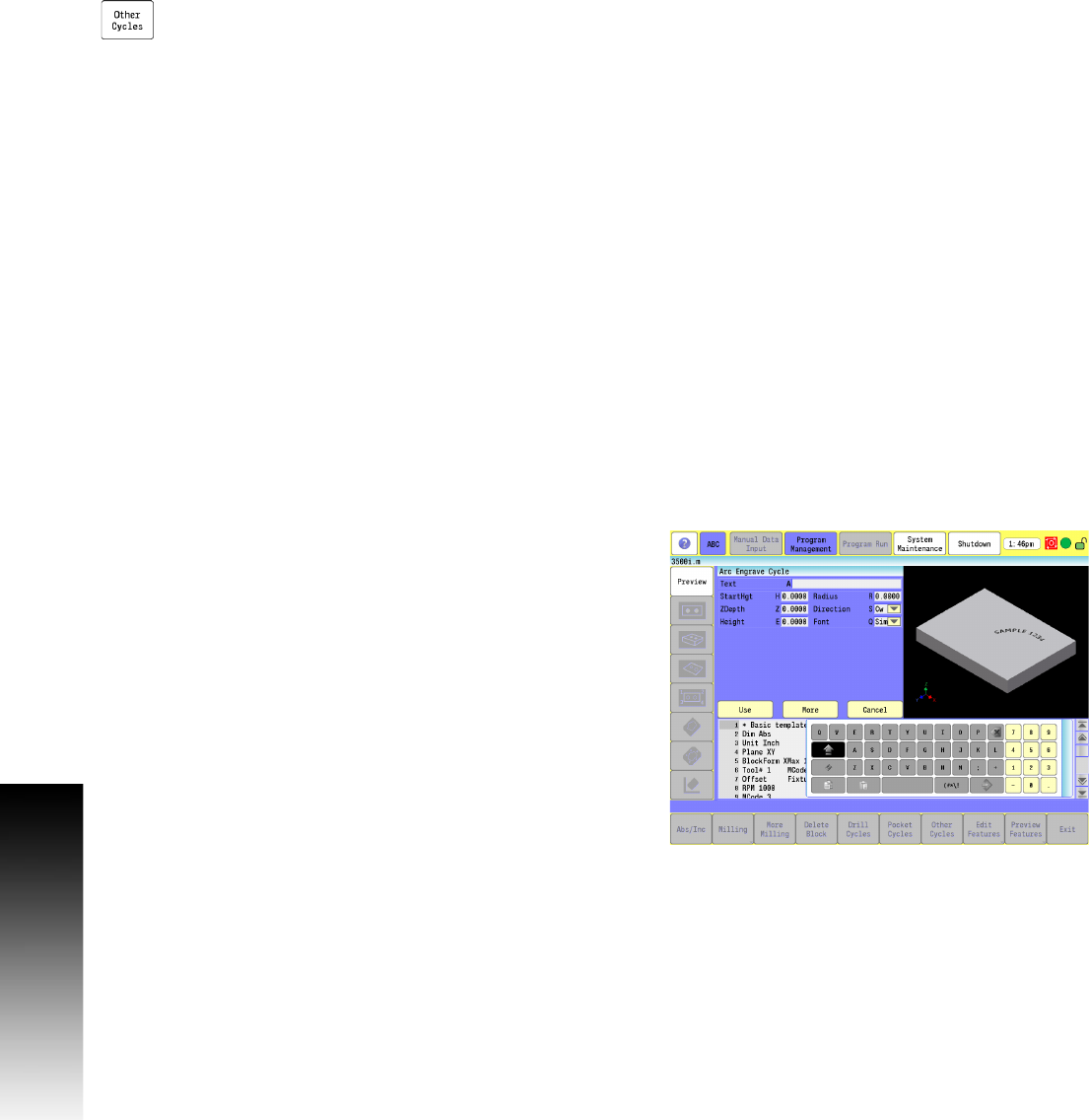

When Other cycles has been selected, the Conversational Data Input
display provides a help screen graphic with each data input dialogue.
This display shown is typical for Arc Engraving data input.
Touch the name of the data to be input. The dialogue menu showing
the necessary fields that require data will be displayed.
