102 6 Conversational Editing
6.1 Conversational Programming
6.1 Conversational Programming
Getting Started
Program blocks are written using the Edit button. Regardless whether
a new program is being created, or an existing program is being
edited.
See “Accessing Program Management” on page 88. Information for
creating a new, or editing an existing program is explained in this
section.

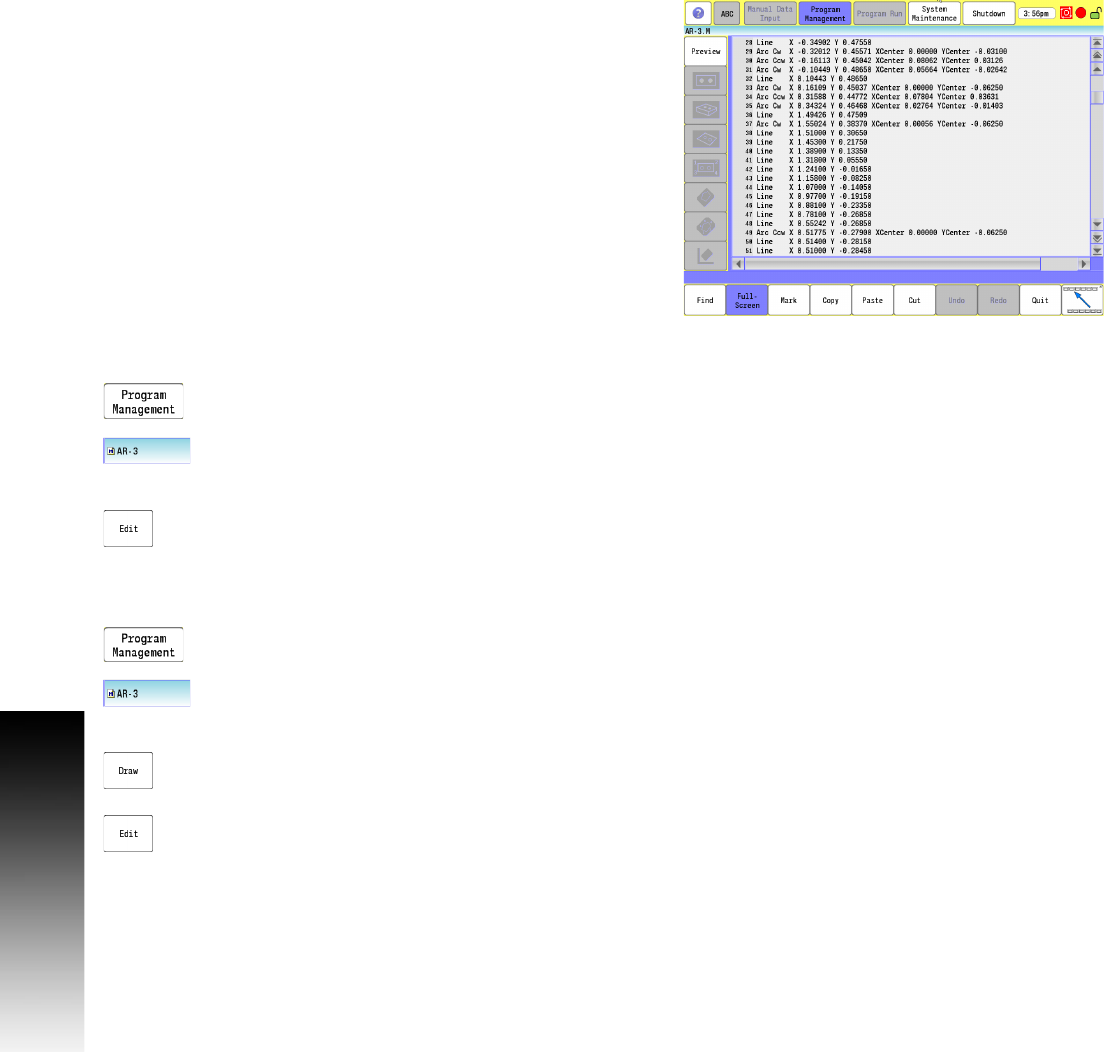

When in the Program Manager, having the program selected, touch
the Edit button. The program will open in the display, and can now be
edited.
If it is preferred to edit a program in Draw mode, touch the Draw
button. Edit mode can be selected at anytime while in Draw mode.
As described above, use either of the following methods to enter Edit
mode.
Direct:
Select the Program Management button.
Select the program for editing (example program
shown).
Touch the Edit button in the bottom menu bar to
enter the program edit mode.
From Draw:
Select the Program Management button.
Select the program for editing (example program
shown).
Touch the Draw button in the bottom button Tool-bar,
to enter the draw program.
From the Draw Program, touch the Edit button in the
bottom menu bar to enter the Edit mode at any time.
