98 5 Program Management
5.3 Creating, Editing, & Selecting to Run
Selecting a Program To Run
You must select a program before you can run it. Only one program
can be selected at a time.

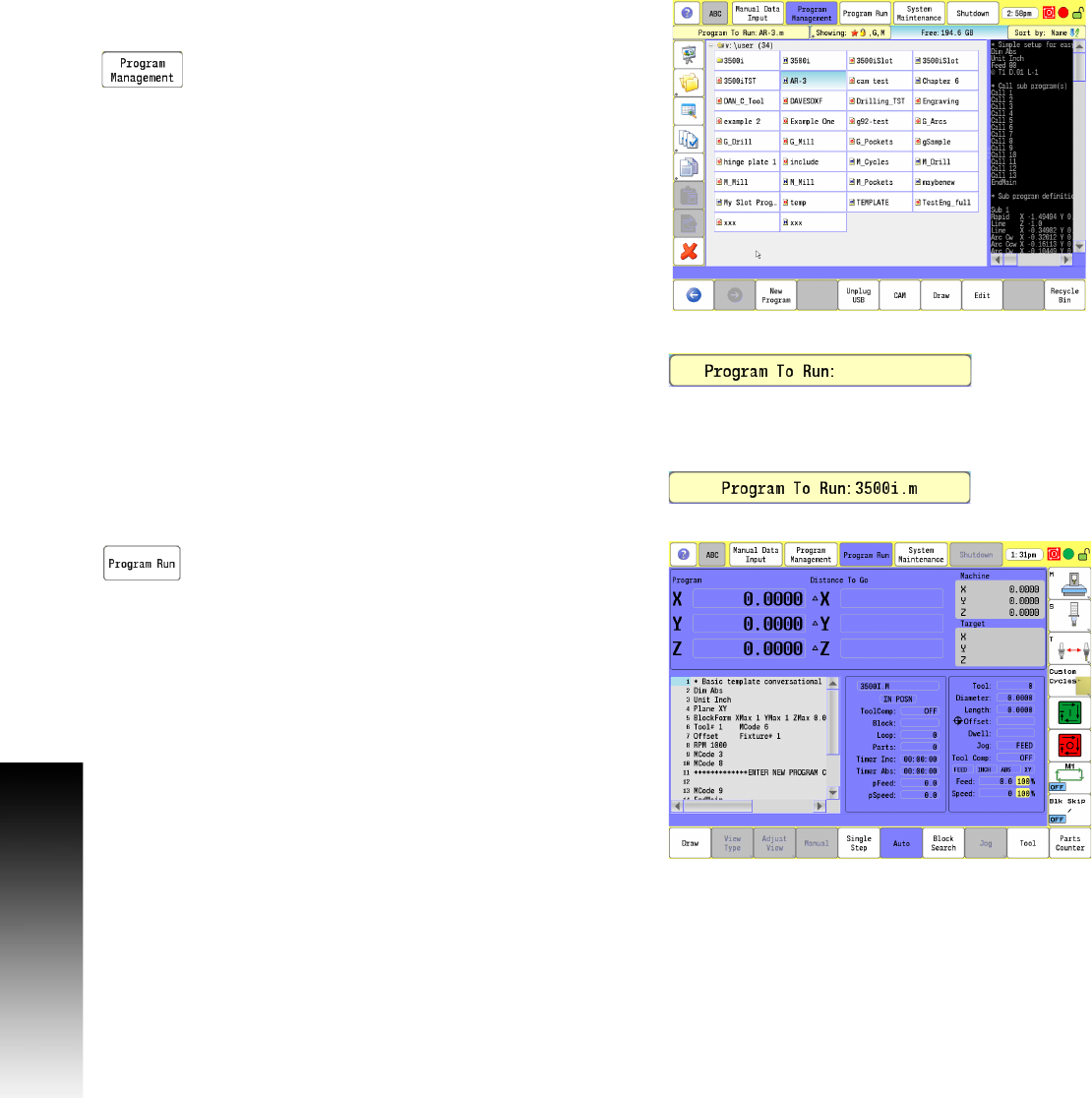

From the Manual Data Input screen (default screen),
touch the Program Management button to activate the
program directory.
Select a program to run.
When a program is selected, the program name will be highlighted.
Program selection:
With a program highlighted, touch the Program To Run button.
The CNC now loads the program.
The name of the currently loaded program is displayed in the
Program To Run button.
Touch the Program Run button.
The CNC loads the program, and is ready to run (refer to Chapter 9).
