ACU-RITE 3500i 97
5.3 Creating, Editing, & Selecting to Run
5.3 Creating, Editing, & Selecting to
Run

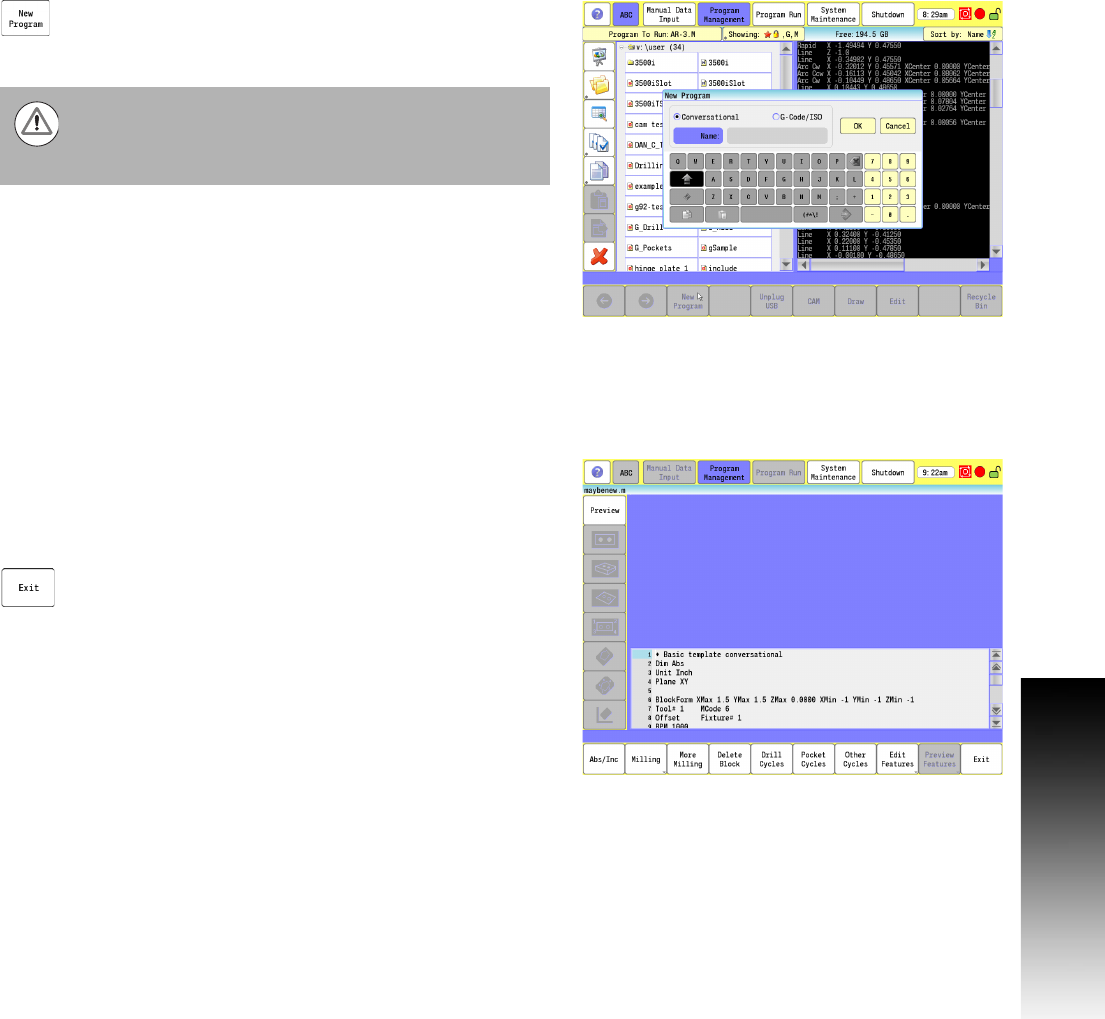

Creating a New Part Program
Touch the New Program button in the Program
Manager to create a new program.
The New Program dialogue opens.
Select Conversational or G-code/ISO depending on the type of
program desired.
Enter the name of the new program in the “Program Name” field.
The program extension will automatically be added to the program
name depending on the type selected above.
Press the Enter key. The new program has now been added to the
program list.
Editing an Existing Part Program
To enter data into the new program, highlight the program name,
and touch on the Edit button.
Touch the existing program to be edited.
Select the Edit button in the Program Manager to
open the program for editing.
A name cannot be longer than 60 alphanumeric
characters. The CNC displays program names as they
were entered. No two programs can have the same
name.
