5.2 Program Manager Functions
Sorting Folder Contents
The sorting button can be used to sort the contents of the folder list.
The sorting button shows the current sort method (default is Sort By
Name, Ascending).
The options for sorting are Name, Size, Type and Date. The operator
can also choose to sort in ascending or descending order.

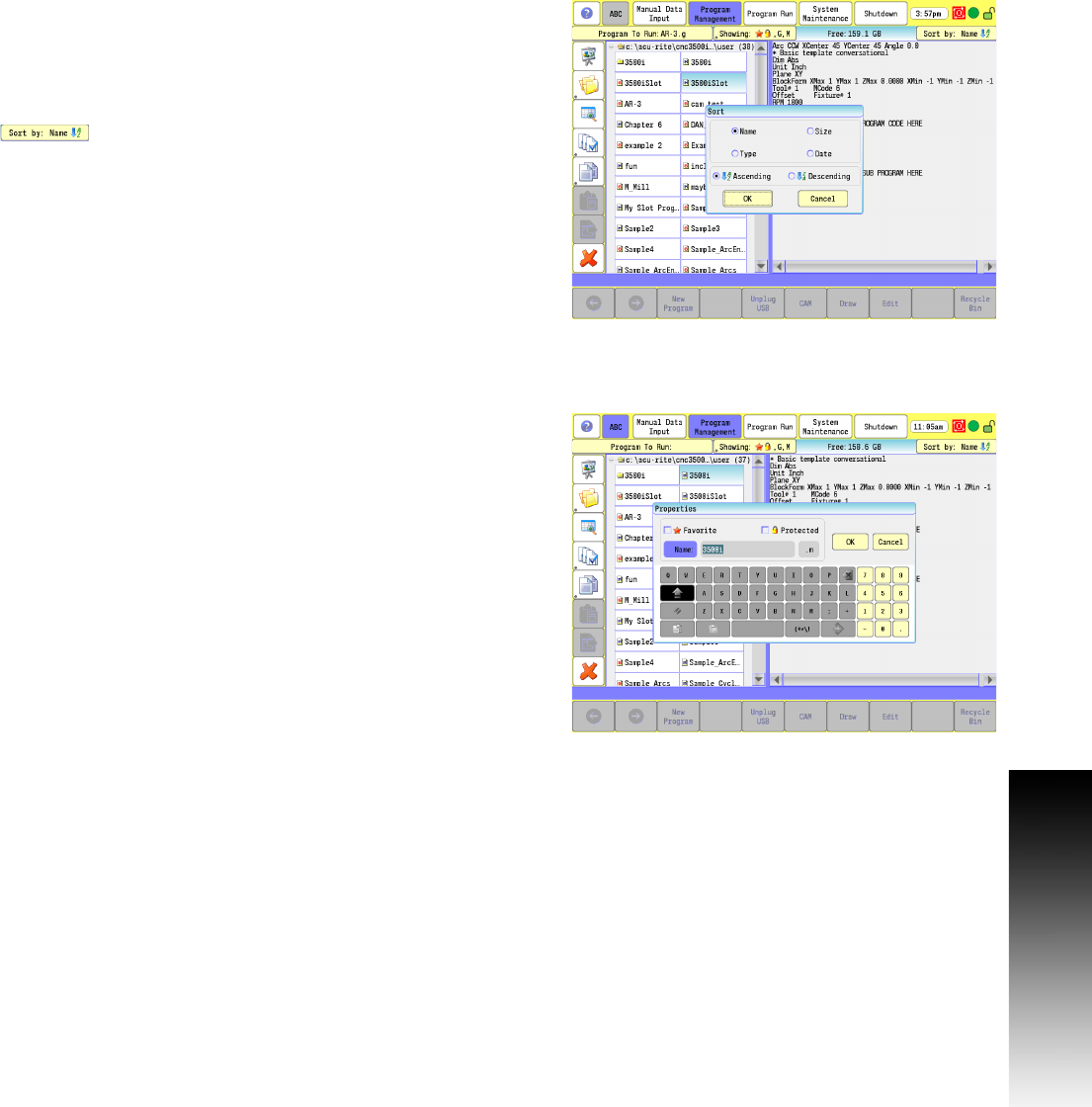

Touch the Sort by Name button and select the sorting
method desired, and touch the OK button.
Program Properties
If the operator touches and holds a program listing in the folder list,
a dialogue for the Program Properties is displayed. This is where the
operator can then change the program name, but not the extension.
The program can also be marked Protected, Favorite or both.
When a program is marked Protected the Lock icon will be displayed
in the Folder Listing to indicate that the program is protected.
Protected programs cannot be edited or renamed but can be copied
or moved. When a program is protected the editor can be launched
but no values may be changed (only viewed). Protected programs
can be selected for Program Run.
When a program is marked Favorite the Star icon will be displayed
in the Folder Listing to indicate that the program is a favorite.
Setting the favorite property of a program is a way to highlight
certain programs on your control that are used often.
