SECTION 2—OPERATION
Part No 1148139 13 MA90 and MA95 Series Mattresses

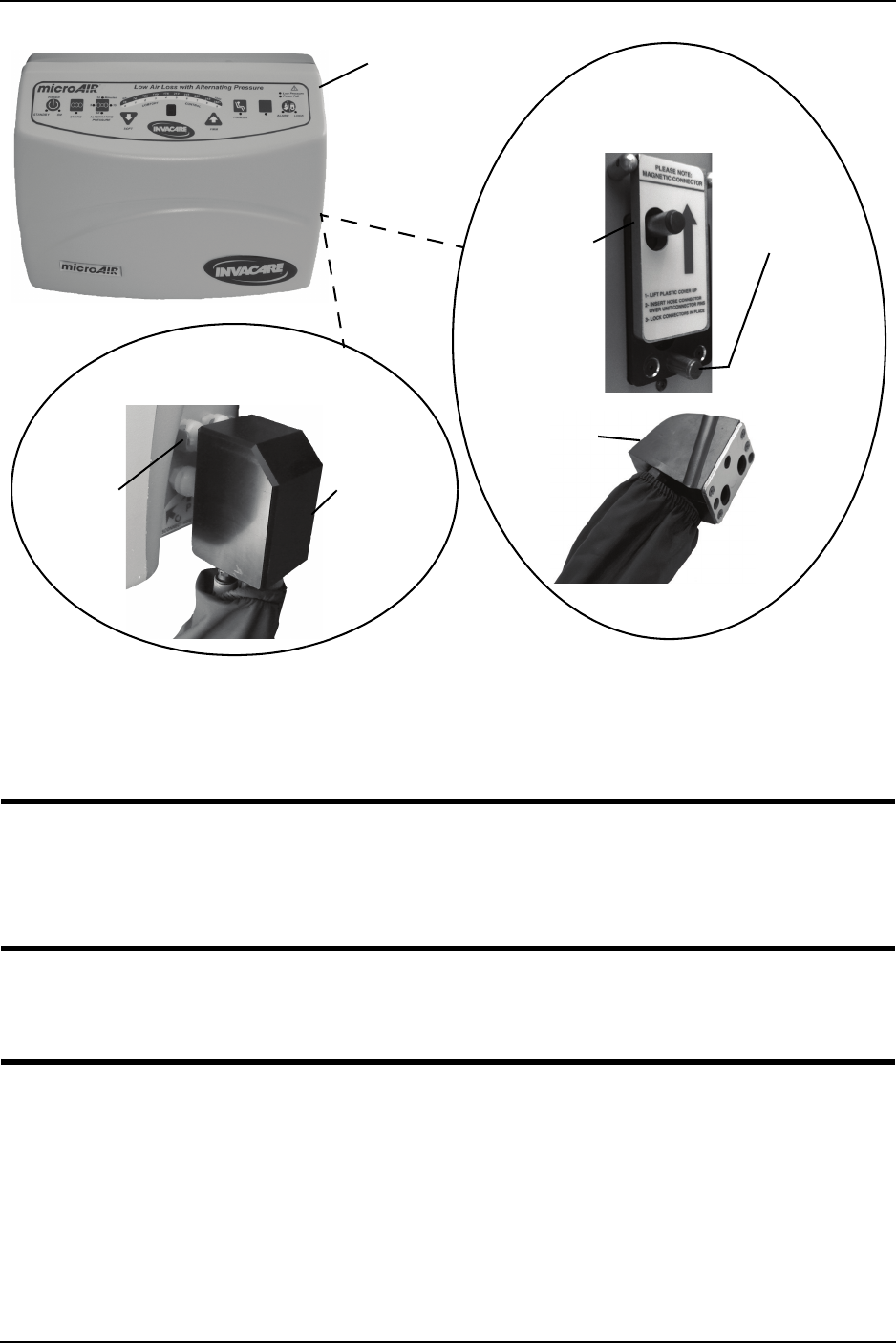

FIGURE 2.3 Connecting the Hose
Connecting the Power Cord
WARNING
DO NOT alter plug to fit a non-conforming outlet. Instead, have an electrician
install a properly grounded outlet. Failure to use the correct plug and outlet can
result in a potential safety hazard.
CAUTION
Ensure that the power cord of the control unit is not pinched, or has any objects placed
on it, and also ensure it is not located where it can be stepped on or tripped over.
1. Examinethehospitalgradepowercordsuppliedwiththecontrolunit.
2. Performoneofthefollowing:
•Iftheplugisdamaged‐Callyoursupplierforareplacementhospitalgradecord.
•Iftheplugisnotdamaged‐Plugtheendofthesuppliedhospitalgrade powercord
intothepoweroutletonthesideofthecontrolunit.
3. Plugtheotherendoftheplugintoaproperlygroundedoutletonthewall.
NOTE:Oncetheunitispluggedin,anAMBERLEDonthecontrolunitislitindicatingthatthe
systemisinSTANDBYmode.
Connector
Cover
Control Unit
Connectors
MA95Z,
MA95ZB42
and
MA95ZB48
Hose
Connector
DETAIL “A” - MA90Z
CONNECTOR
Control
Unit
DETAIL “B” - MA95Z
CONNECTOR
MA90Z,
MA90ZB42
and
MA90ZB48
Hose
Connector
Tab
