SECTION 2—OPERATION
Part No 1148139 11 MA90 and MA95 Series Mattresses

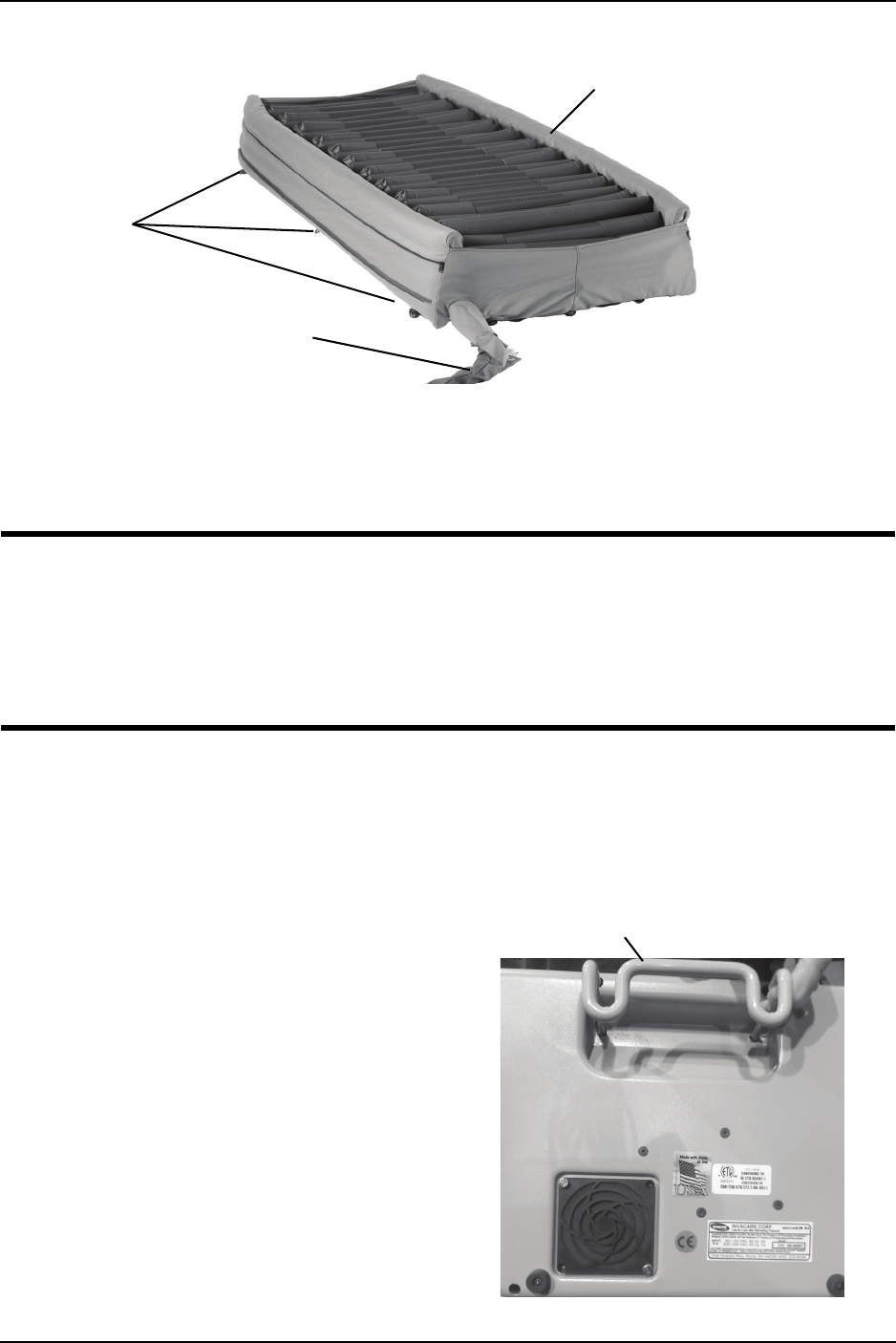

FIGURE 2.1 Installing the Mattress Replacement System
Installing the Side Rails
WARNING
Patient entrapment with bed side rails may cause injury or death. Mattress MUST
fit bed frame and side rails snugly to prevent patient entrapment. Follow the
manufacturer’s instructions. Monitor patient frequently. Read and understand the
Owner’s/Operator’s Manual prior to using this equipment. Invacare product
manuals are available at www.invacare.com or your dealer.
NOTE:Refertotheinstructionsprovidedwiththesiderailsfortheinstallationprocedure.
Installing the Power Unit
NOTE:Forthisprocedure,refertoFIGURE 2.2.
1. Pulloutthebedhookonthebackofthe
controlunit.
2. Placethecontrolunitonthefootboard.
NOTE:Ifthebeddoesnothaveafootboard,
placethecontrolunitonaflatsurface,leaving
roomforthehosetohangdown.
FIGURE 2.2 Installing the Power Unit
Hose
Foot End
Head End
Powered Mattress
Buckle
Straps
NOTE:Mattress
covernotshownfor
clarity.
Bed Hook
