SECTION 2—OPERATION
MA90 and MA95 Series Mattresses 10 Part No 1148139
SECTION 2—OPERATION
CAUTION
The control unit and mattress on the MA90Z series are designed to be used as a
system. DO NOT replace mattresses or control units with other models or other
brands. Otherwise, damage to the system may occur. Contact your supplier to get
the correct replacement if needed.
Installing the Mattress Replacement System
CAUTION
DO NOT strap the mattress to the bed frame at the head and foot ends. Secure
ALL mattress straps. Secure the straps to the bed deck at the head and foot ends
and to the frame at the center of the bed. Otherwise damage to the mattress will
occur when the head and foot ends are raised.
NOTE:Forthisprocedure,refertoFIGURE 2.1.
NOTE:Thepoweredmattresscomeswithtennylonbucklestraps.
1. Removetheoriginalfoammattressfromthebed.
2. Ifnecessary,lowerthesiderailstofacilitateinstallationofthemattress.
3. Unrollthepoweredmattressandplaceitonthebedframe.
NOTE:Ensurethatthehoseistowardsthefootendofthebed.
4. Usethebucklestrapstosecurethepoweredmattresstothebeddeckinthefollowing
locations:
•HeadEnd‐HeadEndBedDeck
• FootEnd‐FootEndBedDeck
•Center‐CenteroftheBedFrame

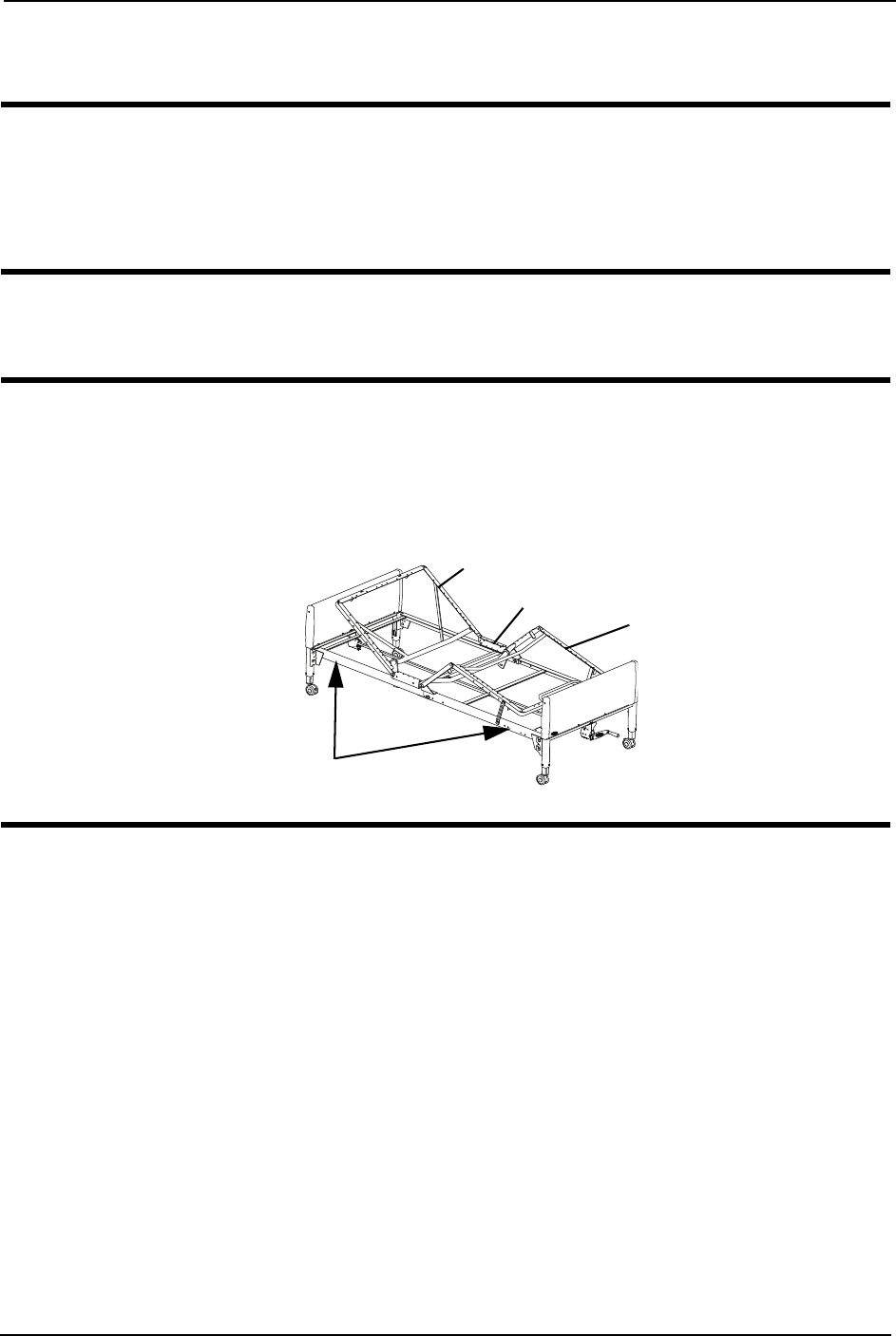

Center of Bed Frame
Head End Bed Deck
Foot End Bed Deck
DO NOT Strap Here
