57
©
If source and destination ports need to be specified, select Specify from the 8.
drop-down menu list (by clicking on the appropriate arrow), then entering
the port numbers.
Click 9. Apply to save the changes. The new port forwarding rule appears in
the “Applied rules” table at the bottom of the screen.
Note: Some applications, such as FTP, TFTP, PPTP, and H323, require the support
of special specific Application Level Gateway (ALG) modules to work inside the
local network. Data packets associated with the aforementioned applications
contain information that allows them to be routed correctly. An ALG is needed
to handle these packets and ensure they reach their intended destinations. The
FiOS Router is equipped with a robust list of ALG modules, enabling maximum
functionality in the local network. The ALG is automatically assigned based on
the destination port.
4.2f View Device Details
To view information about a networked device, or to test a device’s connection,
locate the device in the My Network column, then click View Device Details.

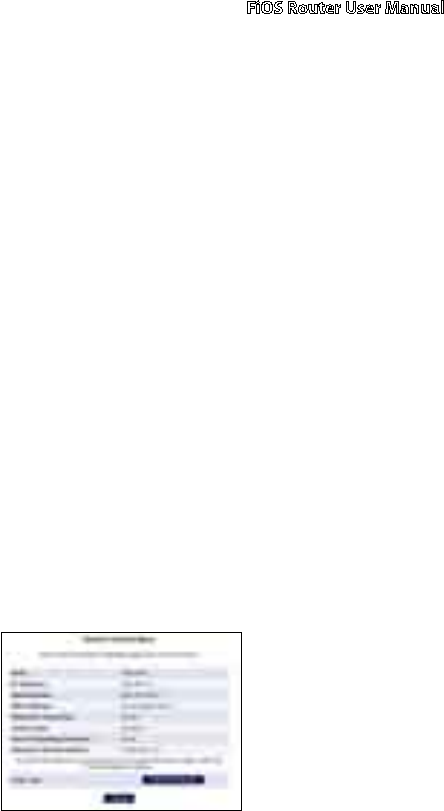

The “Device Information” screen appears.
