User's Manual

Configuring Security Settings
6.7 Remote Administration
6
110
If Show All Services is selected in step 2, select a Service from the list. The 3.
service is added to the Port Triggering screen as an active protocol.
If User Defined is selected in step 2, the “Edit Port Triggering Rule” screen 4.
appears. Enter a service name in the appropriate text box, then configure its
inbound and outbound trigger ports by clicking the appropriate links..
6.7 Remote Administration
The FiOS Router can be accessed and controlled not only from within the local
network, but also from the Internet using remote adminstration.

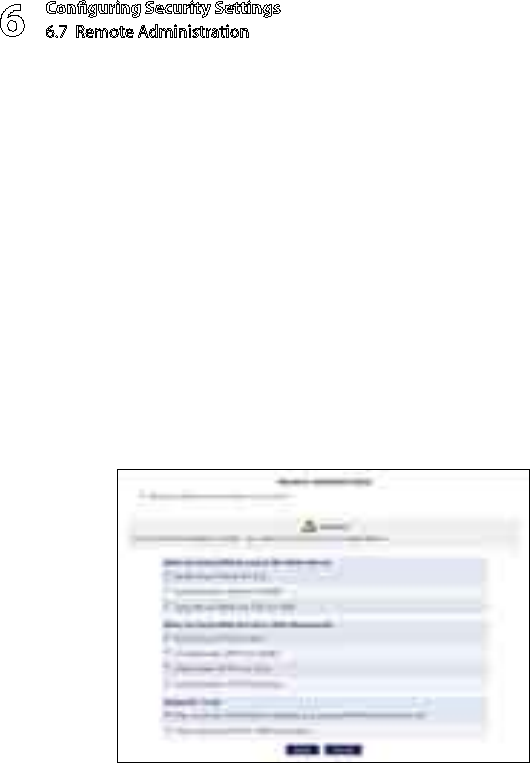

To access, select Remote Administration from the left side of any Security
screen. The “Remote Administration” screen appears.
6.7a Telnet
Telnet is used to create a command-line session and gain access to all system
settings and parameters using a text-based terminal. Select the Telnet port to be
used by clicking in the appropriate check box, then click Apply.
