Bluetooth Optical Mouse OWNER'S GUIDE Ver.1.
Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

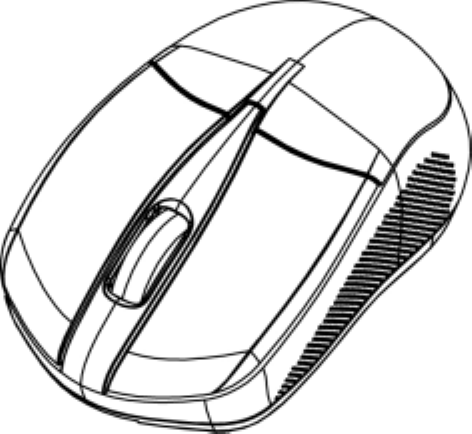

Functional Introduction Battery Cover Mouse Wheel & Pairing LED LED Blinking Paired Link LED OFF Connected OK Connect Button ON / OFF Switch 2
Battery and Power Management: Installing the batteries Step 1: Pull the battery cover backward. Step 2: Insert the batteries as shown inside the battery compartment. Step 3: Replace the cover. Push Power saving features: To conserve the battery power, the mouse offers power management functions as below: 1. The mouse goes into “Saving Mode” after 30 seconds of inactivity. 2. The mouse powers down to “Sleep Mode” after 10 minutes of Inactivity.
Establishing a Bluetooth Connection The Bluetooth mouse can work in any Bluetooth working environment. Before connecting your Bluetooth mouse with your computer, make sure your computer has a working Bluetooth configuration that meets Bluetooth Specification v1.1 or higher with Human Interface Device (HID) profile. If your computer does not support Bluetooth, you need to obtain and install a commercially available Bluetooth adapter which converts your computer to a Bluetooth environment.
5. Select the “My device is set up and ready to be found” check box, and then click “Next”. 6. Press the connection button of the mouse and it starts paring with your PC/notebook. The Green LED light will blink when connecting. Click the icon that represents the Bluetooth mouse, and then click “Next”.
. Click “Don’t use a passkey”, and then click “Next”. Check the documentation for the mouse for any passkey instructions. 8. You can find the Bluetooth mouse in the “Devices” tab when it connected. The Green LED will turn off automatically when the paring is successfully done. Note : Once the Bluetooth mouse is installed, you can either disconnect the wired mouse or leave it connected. (If you leave both mice connected, they will both work.
Disconnecting Bluetooth mouse from your computer If you would like to disconnect your Bluetooth mouse, just open the Bluetooth devices control panel and delete the pairing for the mouse.
Troubleshooting A. Mouse does not work upon installation or is not detected Try one or more of the following: Make sure you have installed the batteries correctly and turn the switch on. Replace a fresh set of batteries if it still doesn’t work. Make sure that computer’s Bluetooth is enabled. Press the connection button to reset the Bluetooth connection between your mouse and computer. Make sure it had been detected by the Operating Systems properly. B.
