Option Choice Description
First / Second / Third
Boot Device/Other Boot
Device
Hard Disk
CDROM
USB-FDD
USB-CDROM
LAN
Disabled
The BIOS attempts to load the operating
system from the devices in the sequence
selected in these items.
LAN Boot Select
Enabled
Disabled
These fields allow the system to search
for an OS from LAN
Hard Disk Boot Priority
N/A
These fields set the Boot Priority for each
Hard Disk

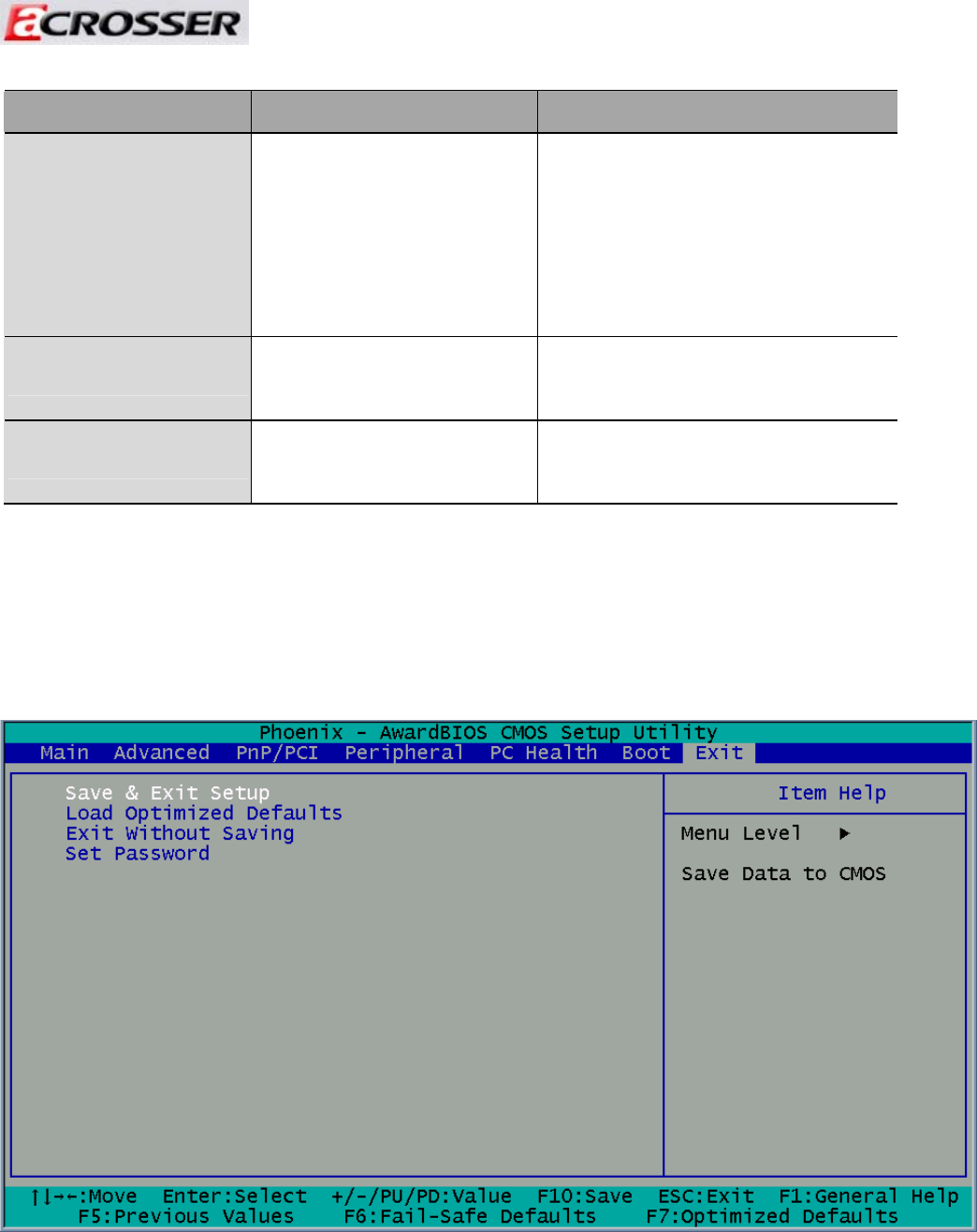

3.7 Exit Setup
This section is used to configure exit mode.
42
