Revision: 1.0

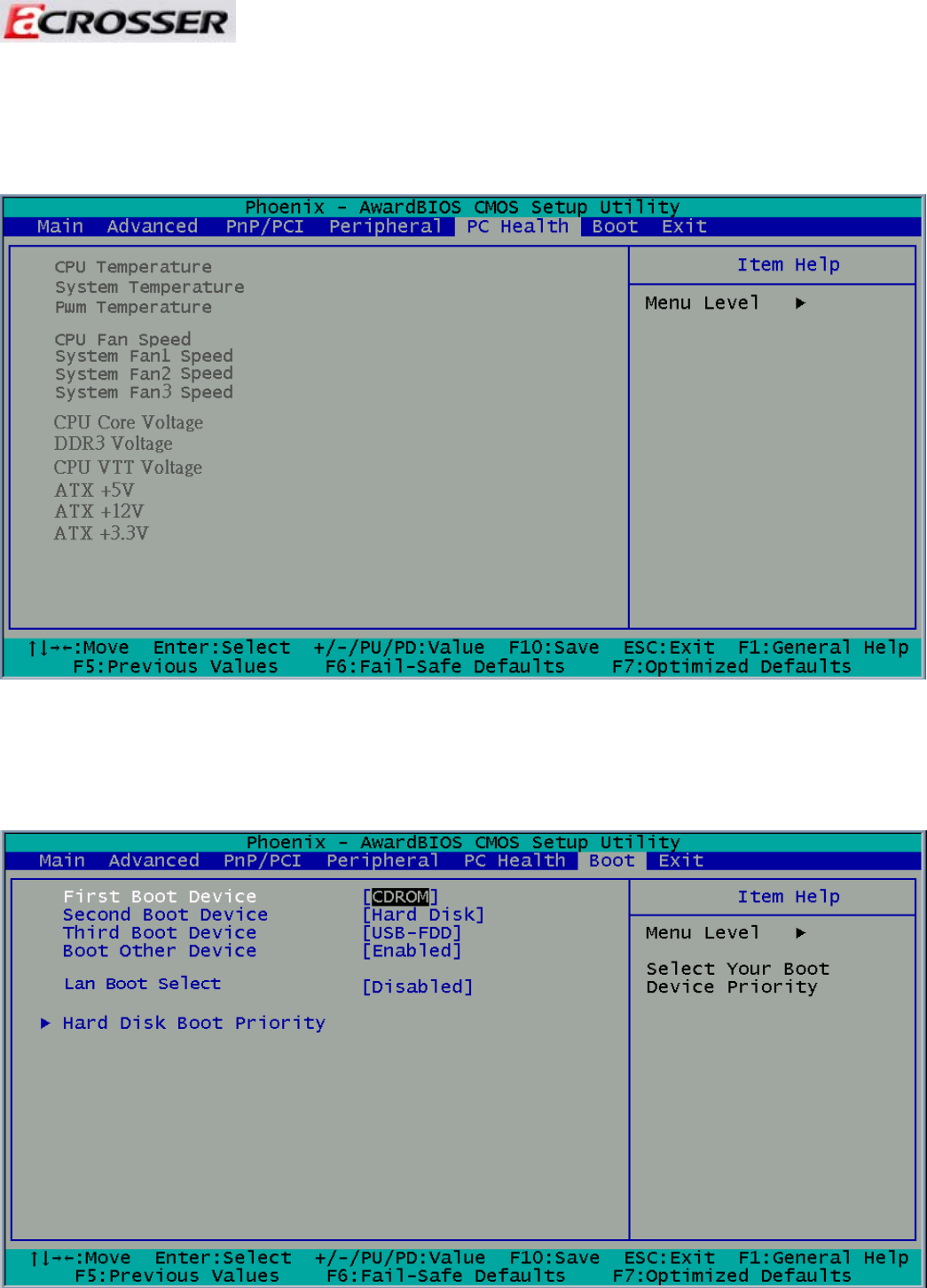

3.5 PC Health Setup
This section shows the parameters in determining the PC Health Status. These parameters
include temperatures, fan speeds, and voltages.
3.6 Boot Setup
This section is used to exit the BIOS main menu. After making your changes, you can
either save them or exit the BIOS menu and without saving the new values.
41
