Full Screen Logo
Show
Enabled
Disabled
Select Enabled to show the OEM full screen logo if you have
add-in BIOS.
APIC Mode
Enabled
Disabled
Advanced Programmable Interrupt Controller.This item
[Enabled] for more system INTerrupts that AR-B5800
required.
Pre-allocated
Memory Size
32Mb
64Mb
128Mb
This Item is for setting the Frame Buffer (Share system memory
as display memory).
DVMT Mode
Enabled
Disabled
Dynamic Video Memory Technology.
[Enabled] for optimizing amount of memory is located for
balanced graphics and system performance.
Console Redirection
Enabled
Disabled
[Enabled] for user who w ant to remote control the system via
serial port.
Baud Rate
115200(Max)
The baud rate of remote control machine should the same as
the system for communication.
LAN Bypass
Function
Enabled
Disabled
For user Enable/Disable LAN Bypass Function !!.

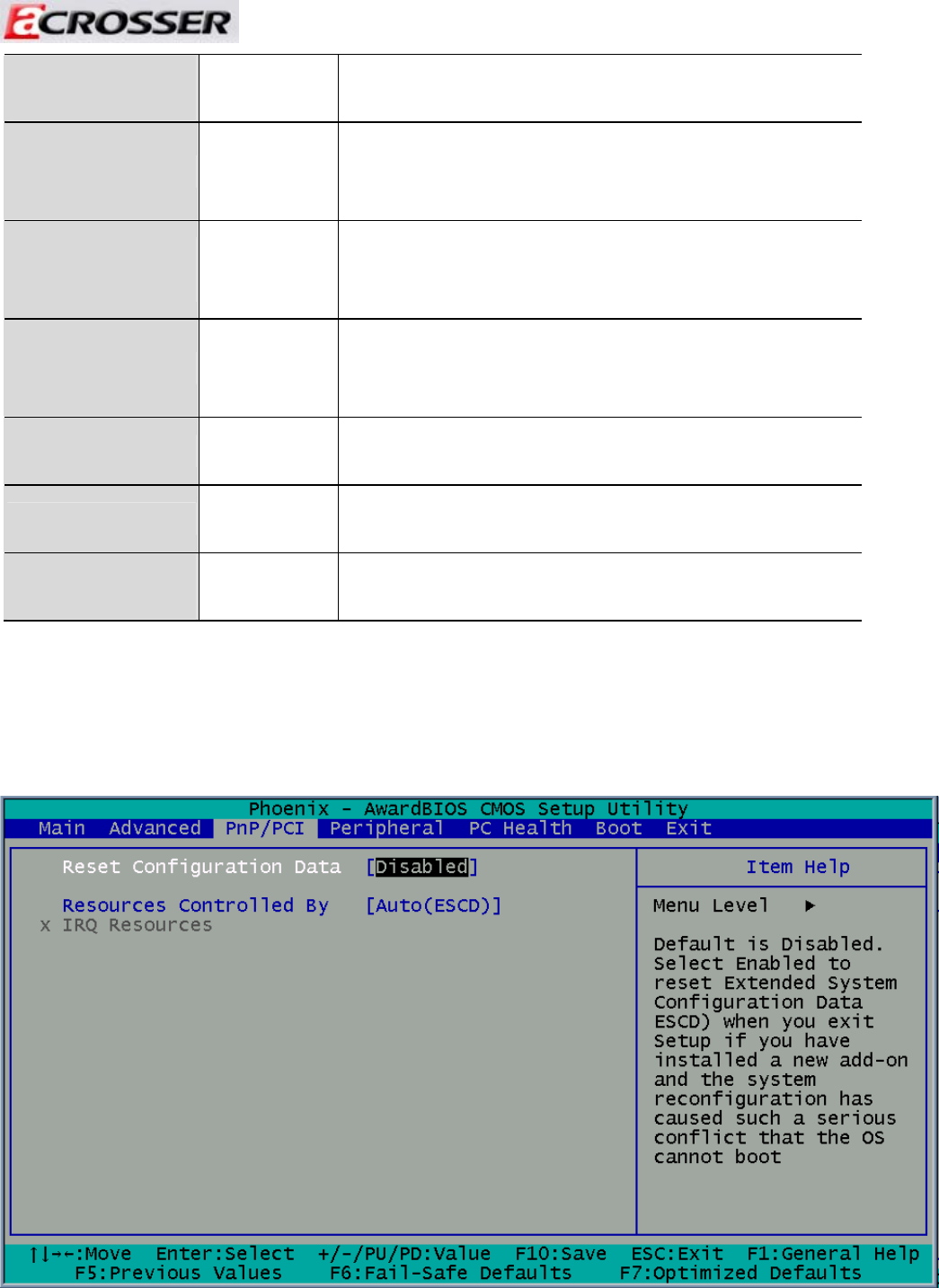

3.3 PnP/PCI Setup
The option configures the PCI bus system. All PCI bus system on the system use INT#,
thus all installed PCI cards must be set to this value.
38
