3.1 Main Setup

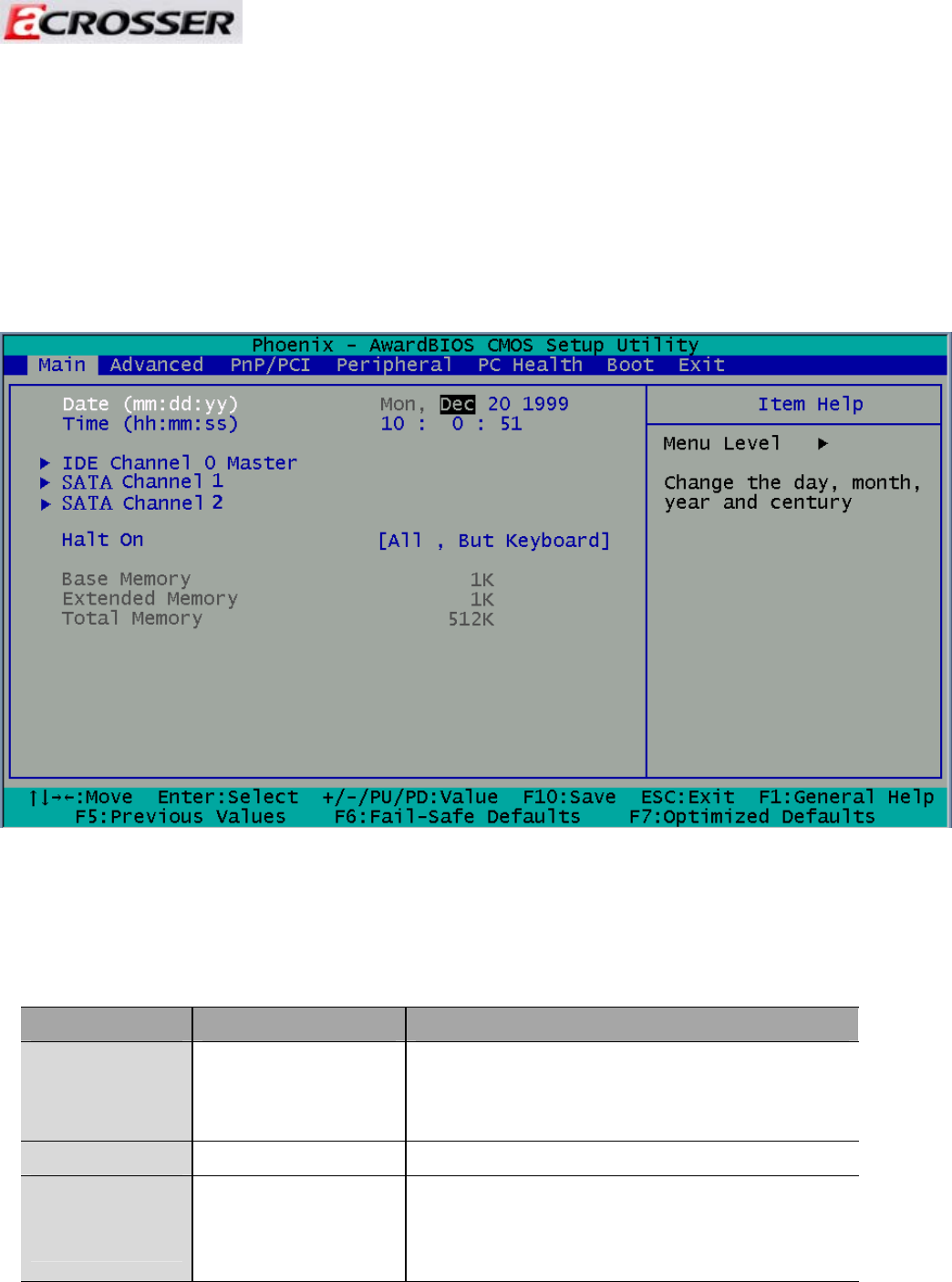

Once you enter the Award BIOS™ CMOS Setup Utility, the Main Menu will appear on the
screen. Use the arrow keys to highlight the item and then use the <Pg Up> <Pg Dn> keys
to select the desired value in each item.
Note: The control keys are listed at the bottom of the menu. If you need any help with the item fields,
you can press the <F1> key, and the relevant information will be displayed.
Option Choice Description
Date Setup
N/A
Set the system date. Note that the ‘Day’
automatically changes when you set the
date.
Time Setup
N/A Set the system time.
IDE Channel 0
Master
N/A
The onboard CF connectors provide one
channel for connecting one CF CARD Only
the BIOS will auto-detect the CF type.
