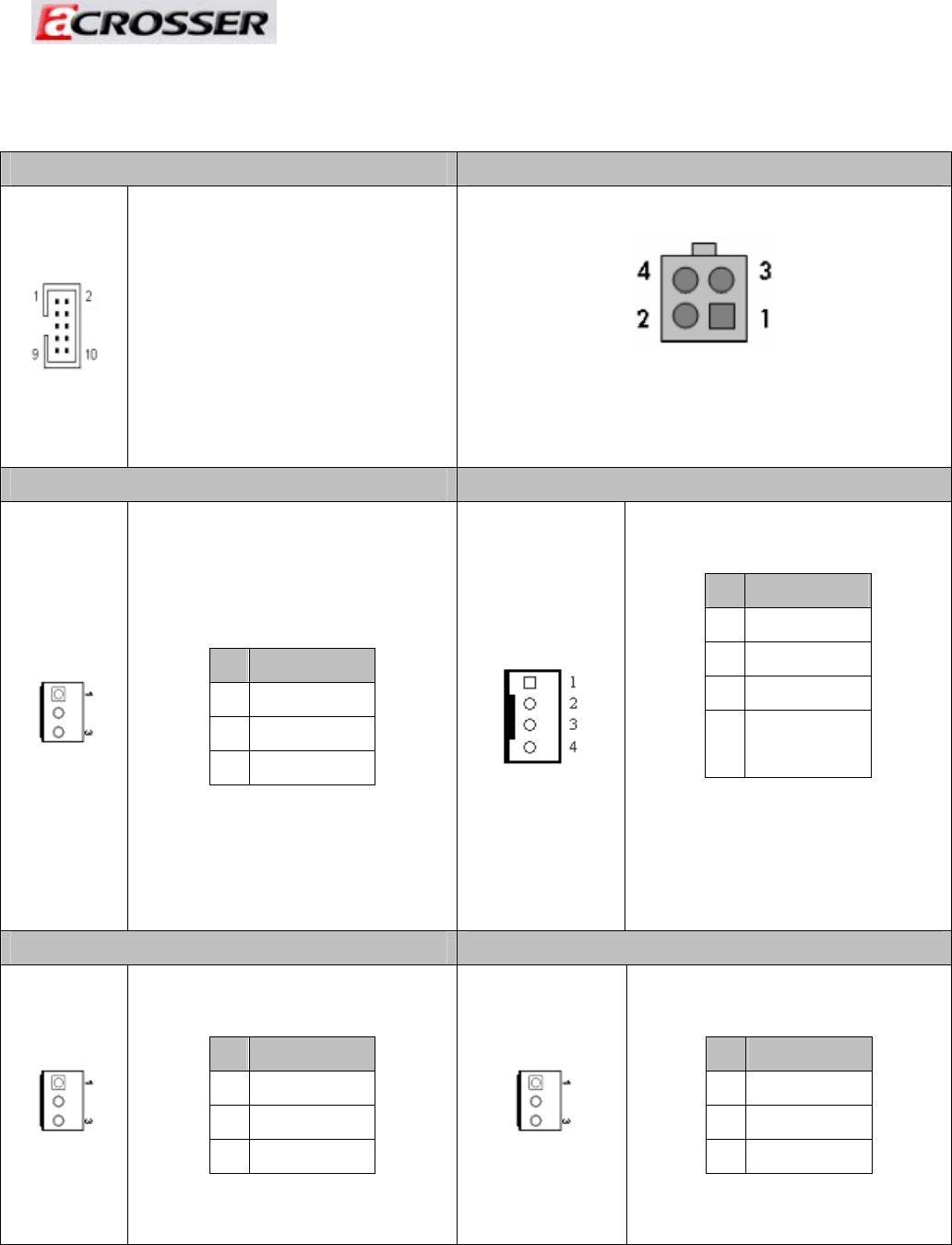

22. VGA1 (2x5pin 2mm Wafer). 23. ATX12V1. (ATX12V Power Input)
VGA Wafer CONNECTOR .
24. SYSFAN3 (System FAN connector 3). 25. CPUFAN1 (CPU FAN connector).
PIN SIGNAL
1
GND
2
+12V
3
Fan speed data
ON/OFF controlled by CPU
temperature setting of BIOS.
PIN SIGNAL
1
GND
2
+12V
3
Fan speed data
4
CPU FAN PWM
Control
26. SYS_FAN2 (System FAN connector 2). 27. SYS_FAN1 (System FAN connector 1).
PIN SIGNAL
1
GND
2
+12V
3
Fan speed data
PIN SIGNAL
1
GND
2
+12V
3
Fan speed data
