To perform a direct configuration of the PXE server
1. Start Acronis Snap Deploy 5 Management Console.
2. In the navigation pane, click PXE server.
3. If the PXE server is installed on a different machine, click Connect to the PXE server, and then
specify the name or IP address of that machine. In logon settings, specify the user name and
password of an administrator on that machine.
When connected to the PXE server, you can perform the following operations by clicking the
corresponding buttons on the toolbar:
Upload components: Upload bootable components (p. 64), such as Acronis Snap Deploy 5 Agent,
in the same way as when creating an Acronis bootable media (p. 65). The previously uploaded
components will be deleted from the PXE server before uploading the newly selected ones.
Upload PE image to PXE: Upload the Preinstallation Environment (PE) image (a .wim file) that
was previously created with Acronis Snap Deploy 5 PE builder. For details, see “Uploading a PE
image to Acronis PXE Server” (p. 71).
Remove: Remove a component or PE image from the PXE server.
Disable PXE Server: Disable the PXE server. The service does not stop, but no longer responds to
incoming requests.
Enable PXE Server: Enable the previously disabled PXE server.

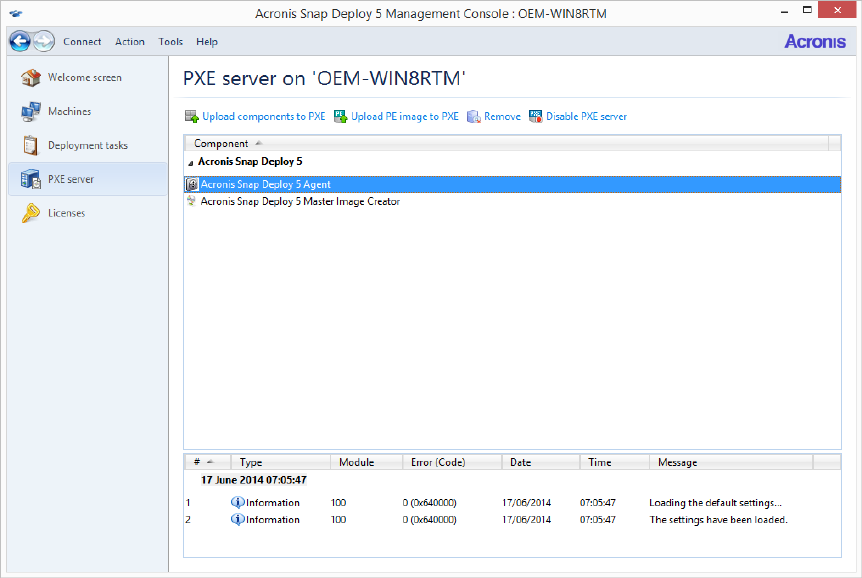

Two bootable components of Acronis Snap Deploy 5 are uploaded to the PXE server.
