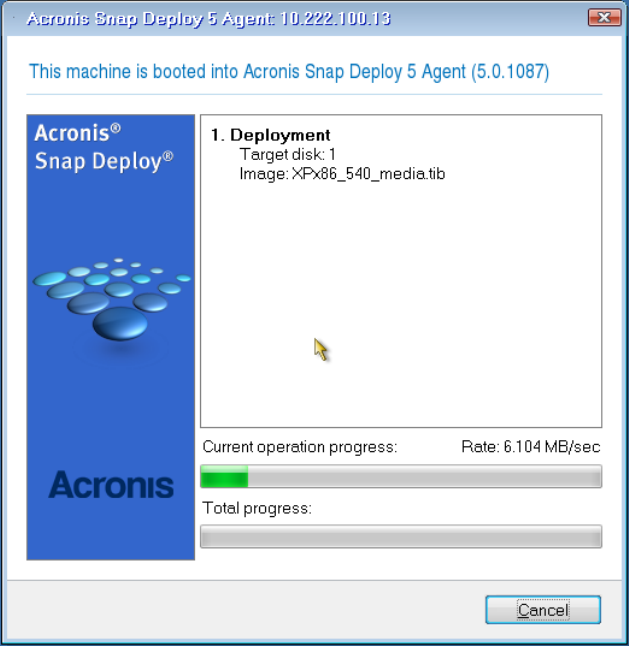

The user who requested deployment sees the following screen while the deployment is in progress.
User-initiated deployment in progress: view on the target machine’s side
10.6.4 Changing parameters of the user-initiated deployment mode
To change the templates or the boot menu password used in the user-initiated deployment mode,
you need to reconfigure the user-initiated deployment mode.
1. If some user-initiated deployment operations are active, either stop the operations or wait until
the operations are completed.
2. In the welcome screen of the management console, click Configure user-initiated deployment,
and then repeat the procedure described in “Setting up the user-initiated deployment mode” (p.
119). The earlier selected options will be set, so you have to enter only the changes.
10.6.5 Switching off the user-initiated deployment mode
To switch off the user-initiated deployment mode
1. If some user-initiated deployment operations are active, either stop the operations or wait until
the operations are completed.
2. In the welcome screen of the management console, in the User-initiated deployment mode area,
click Switch off.
3. If the user-initiated deployment mode uses Acronis PXE Server, the software needs to remove
the custom deployment templates from the server. If prompted, specify the credentials for the
PXE server (the user name and password of an administrator on the machine with the PXE
server).
