Getting to Know Your Wireless Router 4

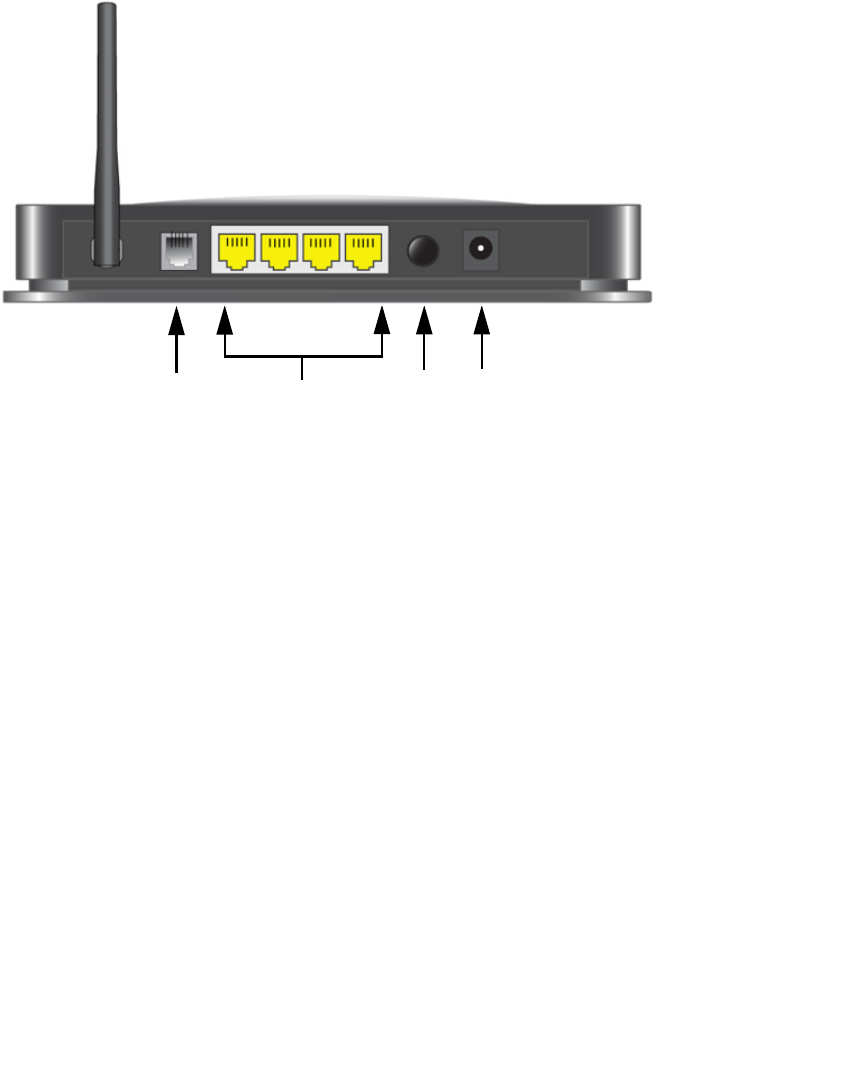

Router Back Panel
The back panel of the wireless modem router contains port connections.
Viewed from left to right, the rear panel contains the following elements:
1. RJ-11 ADSL port for connecting the wireless modem router to an ADSL line
2. Four Local Ethernet RJ-45 LAN ports for connecting the wireless modem router to the local
computers
3. Power On/Off button
4. AC power adapter input
Figure 2
1
2
4
3
