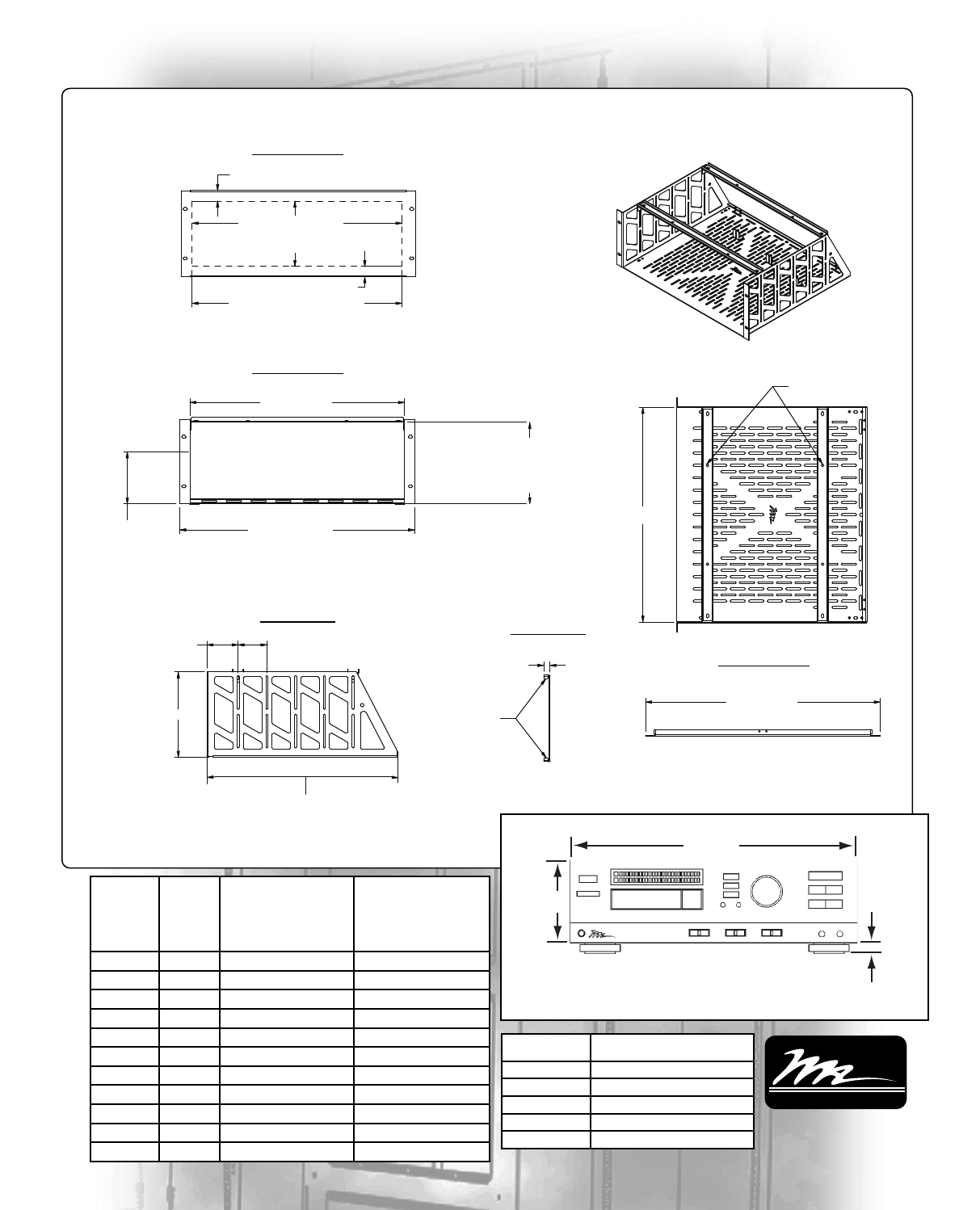

RSH basic dimensions
US: New Jersey • California • Illinois • Voice: 973-839-1011 Fax: [phone] • middleatlantic.com
Canada: Ontario • British Columbia • Voice: 613-836-2501 Fax: [phone] • middleatlantic.ca
tabs
secure
over rack
ears
.51 [13]
19.00 [483]
.188 [5] minimum
.188 [5] minimum
17.375 [441] maximum
A
17.38 [442]
19.00 [483]
shown with
optional clamps
2.33 [59] typ.
11.50 [292] / 14.00 [356] / 15.50
[394] / 17.50 [445] / 20.50 [521]
B
(maximum equipment
height) when using
clamp option
C (minimum
equipment height)
when using clamp
option
17.38 [442]
custom cut to fit
your component
RACKSPACES
A
Height
OPTIONAL CLAMP
B
Maximum
equipment height
OPTIONAL CLAMP
C
minimum
equipment height
2 space 3.50 [89] 2.85 [72] 1.04 [26]
3 space 5.25 [133] 4.60 [117] 2.79 [71]
4 space 7.00 [178] 6.35 [161] 4.54 [115]
5 space 8.75 [222] 8.10 [206] 6.29 [160]
6 space 10.50 [267] 9.85 [250] 8.04 [204]
7 space 12.25 [311] 11.60 [295] 9.79 [249]
8 space 14.00 [356] 13.35 [339] 11.54 [293]
9 space 15.75 [400] 15.10 [384] 13.29 [338]
10 space 17.50 [445] 16.85 [428] 15.04 [382]
11 space 19.25 [489] 18.60 [472] 16.79 [427]
12 space 21.00 [533] 20.35 [517] 18.54 [471]
PART # FINISH
RSH4A black brushed and anodized
RSH4S black textured powder coat
-C clamp kit for all above
AFACE black anodized face plate only
SFACE black textured face plate only
A
ll dimensions in inches unless otherwise noted [All dimensions in brackets are millimeters]
F
W
H
Dimensions needed for component to be mounted (H, W & F),
must be accurate within 1/32”
2.52 [64] typ.
FRONT VIEW
FRONT VIEW
FRONT VIEW
SIDE VIEW
SIDE VIEW
Middle Atlantic Products
