User`s manual

English-11English-10

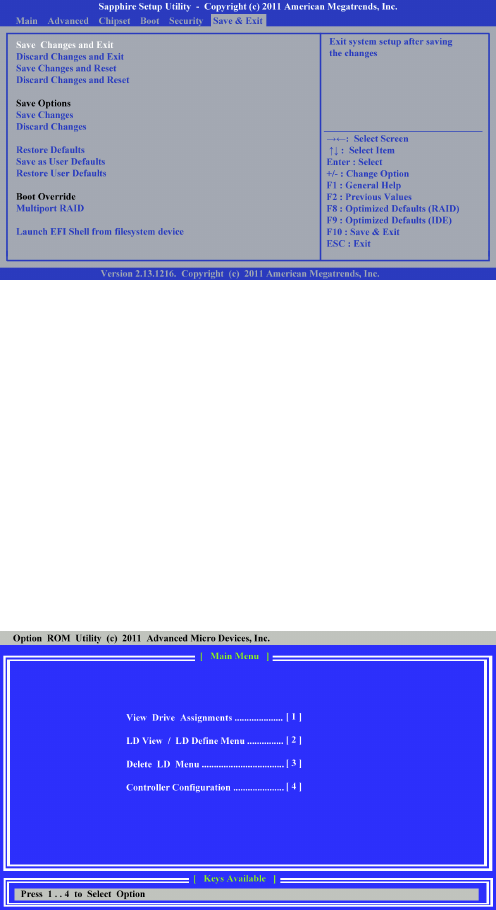

Figure 12. BIOS Save & Exit Screen
RAID Setup
To setup a RAID from new hard drives, follow these instructions.
RAID Setup Step 1:
Apply power, and press the Power Button. Then apply power to the unit, and
press the <DELETE> key repeatedly until the BIOS window is displayed.
Then Press <F8> to load optimized RAID defaults and the press <F10> to
save these settings. The Multiport will restart, and once the RAID message
appears on the Screen – “RAID Option ROM Version 3.3.1540.11 …” press
the <CTRL> <F> keys to enter the BIOS Utility. See Figure 13 below.
Figure 13. RAID Initial Screen
