Relative coordinate movement

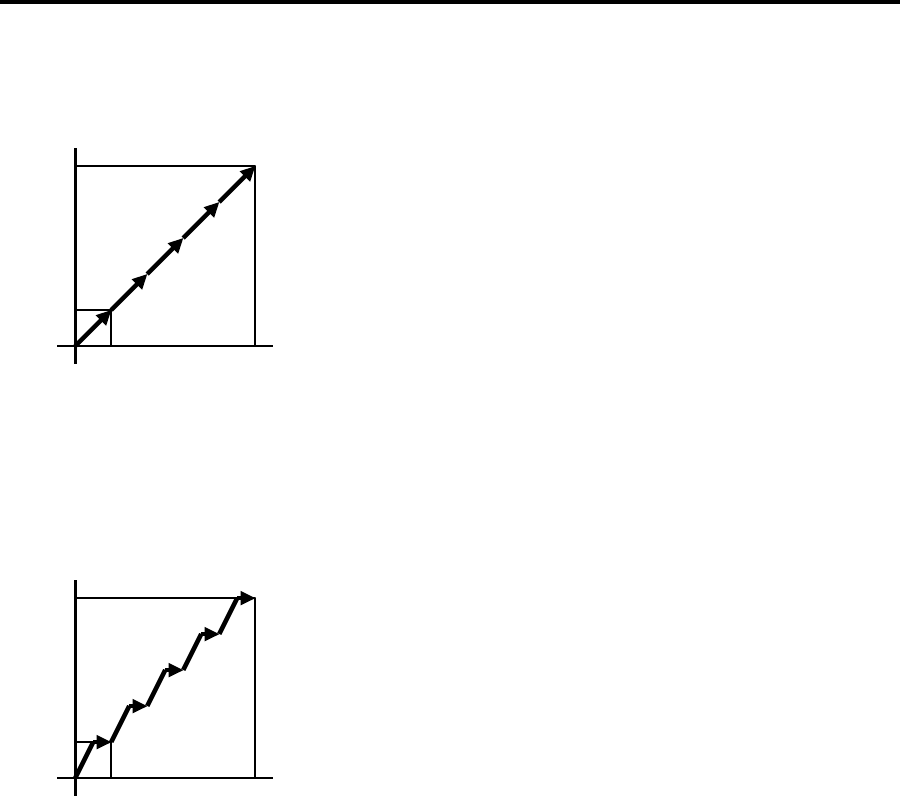

1) RMVL is the command for linear interpolation of relative coordinate movement.
You can give variables or constants to define the parameters.
5000
5000
X
Y
0
0
10 PG &H400
20 ACCEL 5000
30 FEED ALL_A 0
40 CLRPOS
50 FOR I=1 TO 5
60 RMVL 1000 1000 0 0
70 WAIT RR(ALL_A)==0
80 NEXT I
1000
1000
I=1
I=2
I=3
I=4
I=5
2) The RMVS command is similar to the RMVL command but it doesn't have linear
interpolation.
5000
5000
X
Y
0
0
10 PG &H400
20 ACCEL X_A 5000
30 ACCEL Y_A 10000
40 FEED X_A 128
50 FEED Y_A 0
60 CLRPOS
70 FOR I=1 TO 5
80 RMVS 1000 1000 0 0
90 WAIT RR(ALL_A)==0
10 NEXT I
1000
1000
I=1
I=2
I=3
I=4
I=5
