Move to the origin (HOME)
HOME is the command for programming the movement of a robot back to the staring
point of its action.
Format
HOME n rate cond [n1 rate1 cond]
n: axis constant X_AZ_A
rate: pulse rate (pps)
cond: input condition INx_ONINx_OFF

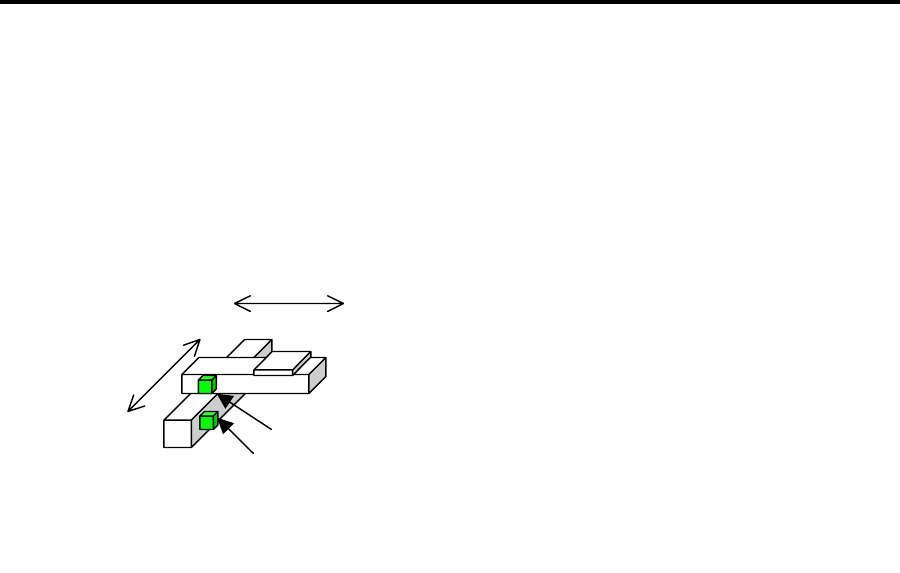

Y
CW CCW
X
CW
CCW
Y
S1 (Y origin)
XS1 (X origin)
XS1=the 11
th
pin of J4 connector on the MPG-314 board.
Y
S1=the 13
th
pin of J4 connector on the MPG-314 board.
10 PG &H400
20 ACCEL ALL_A 5000
30 FEED ALL_A 0
40 GOSUB *HOME
50 END
60 *HOME
70 RMVL 500 500 0 0 /* move in an opposite direction from origin (CW)
80 WAIT RR(ALL_A)==0 /* wait until moving complete
90 HOME X_A -500 IN0_ON Y_A -500 IN0_ON /* CCW movement until the sensor turns on
100 WAIT RR(ALL_A)==0 /* wait until movement complete
110 STPS 0 0 0 0 /* setting current position to ZERO
120 PRSET_ACCEL ALL_A /* ACCEL parameters restore
130 FEED ALL_A 0 /* FEED reset
140 RETURN
