AZWG10000

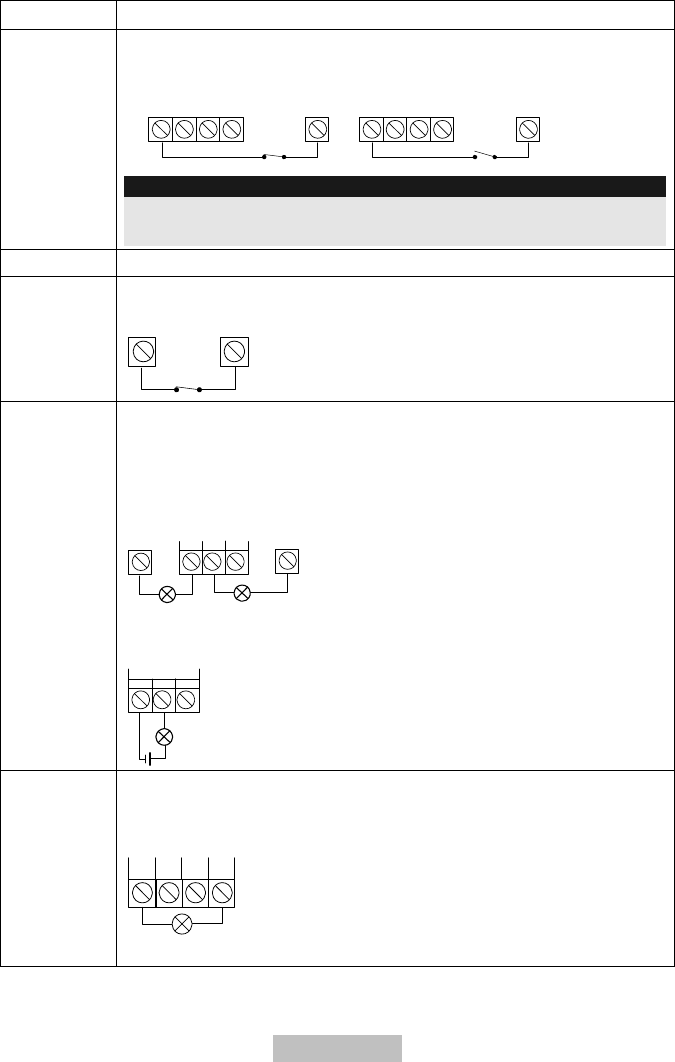

Connection Description
PR = positive triggering signal (12V/AUX)
Select between NC, contact “Normal Closed” NO, contact “Normal
Open”.
1234
INPUT
AUX
NO
1234
INPUT
AUX
NC
IMPORTANT:
Note that the wiring must conform to the programming of the
trigger signal!
COM
0 V (ground)
TMP Tamper contact
Tamper detection and message from lid and removal contact
COM TMP
NC
UO1 Relay output (3 A maximum)
NC: Contact “Normal Closed”
C: Centre tap for NC and NO
NO: Contact “Normal Open”
Wiring example when using the internal AUX or COM:
COM
AUX
N.C C N.O
UO1
Wiring example of an external device with additional voltage
supply:
N.C C N.O
UO1
UO2
–
UO4 Transistor outputs (100 mA each)
3 negative-switched transistor outputs
Wiring example:
UO2 UO3 UO4 AUX
AUX
13.8 V DC
