ABSCO PREMIER SHED
MODEL: 30302GK-PTX
10’ W x 10’ D x 7’ H
Australian Made
PAGE 8
ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 26/02/14

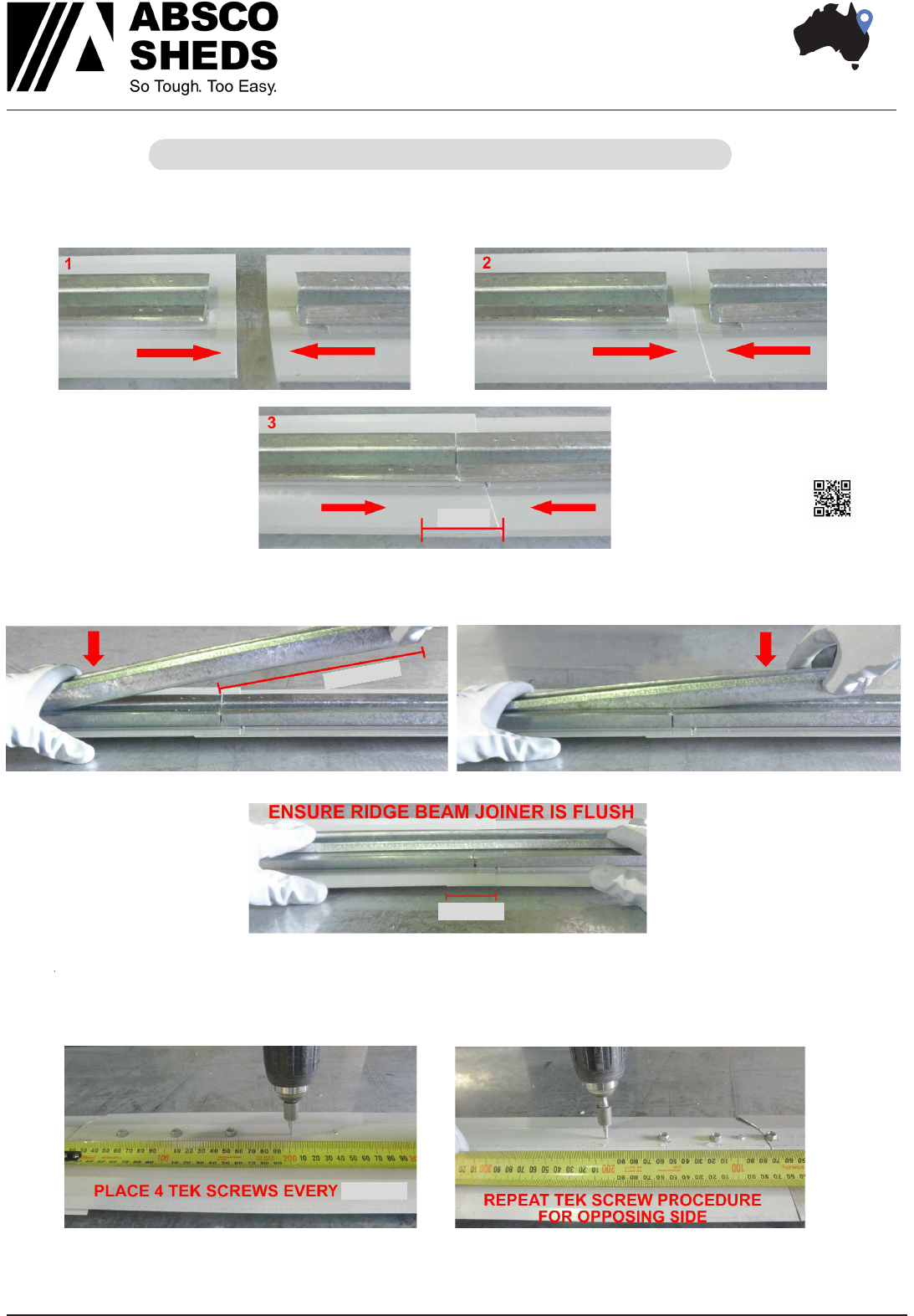

STAGE 1: PUSH RIDGE BEAMS TOGETHER, MAKE SURE THERE IS A 2" OVERLAP
OF THE RIDGE CAP
STAGE 2: INSERT RIDGE CAP JOINER INTO CONNECTED RIDGE CAPS.
MAKE SURE JOINER HAS 8 55/64" IN EACH RIDGE CAP.
STAGE 3: TURN RIDGE CAP OVER AND MEASURE 9 27⁄32" FROM THE END
OF EACH RIDGE CAP.
PLACE TEK SCREWS IN 2" INCREMENTS FROM SAID END.
REPEAT THIS PROCESS FOR THE OPPOSING HALF OF RIDGE BEAM
INSTRUCTIONS FOR JOINING SPLICED RIDGE BEAM
2"
8 55⁄64"
2"
2"
Premier Garden Shed - Model: J30232G
