Status
Configured, otherwise, the status will show Idle.

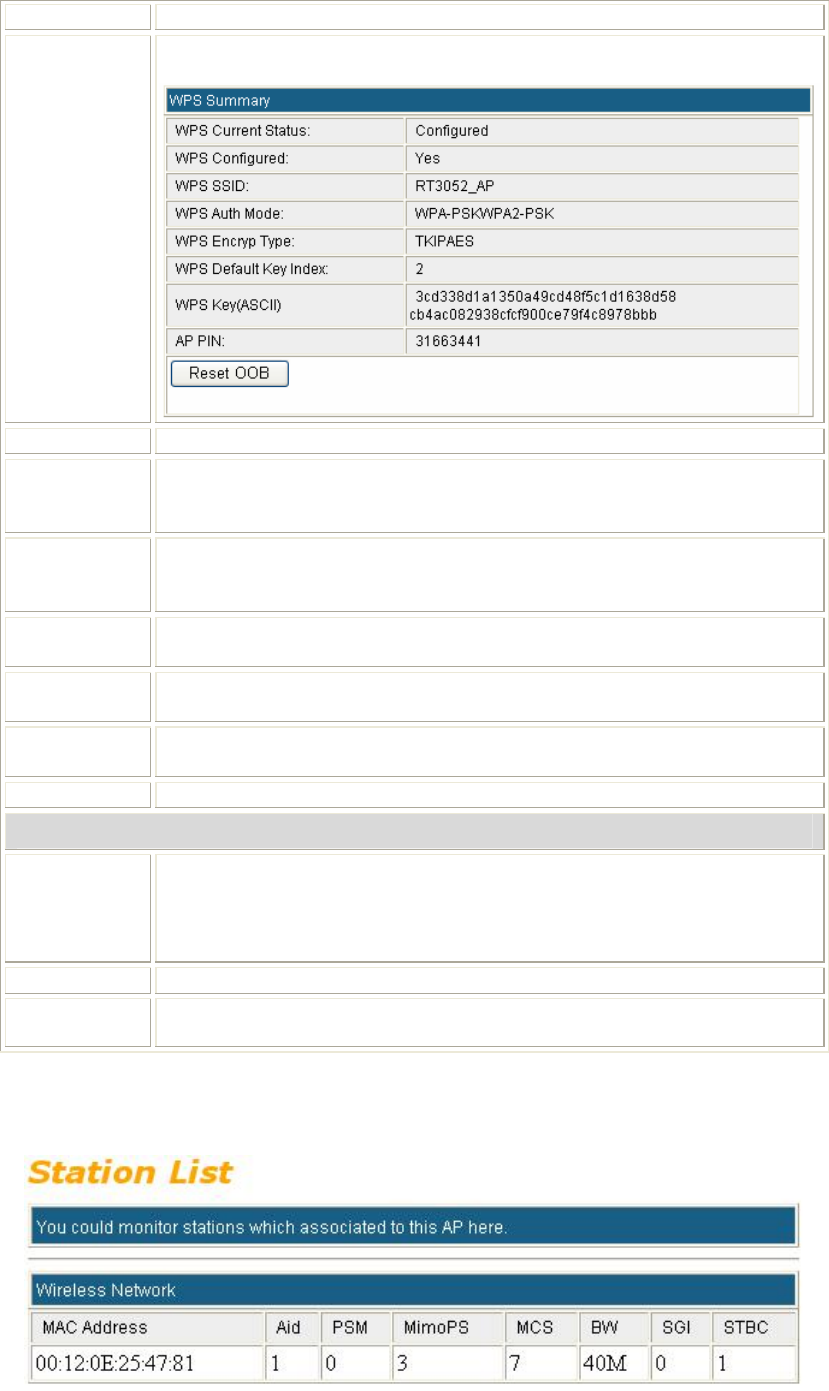

WPS
Configured
Trigger WPS AP to do simple config with WPS Client. If WPS configured, here
shows Yes, otherwise, NO.
WPS SSID
Shows the Wireless Portable Router network name.
WPS Auth
Mode
The WPS authentication type supports Open, Shared, WEP Auto, WPA-PSK,
WPA2, WPA2-PSK, WPA-PSK/ WPA2-PSK. Please go to the configuration
page Wireless Settings > Security to set up the WPS security.
WPS Encryp
Type
For Open authentication mode, the selection of encryption type are NONE and
WEP. For WPA-PSK, WPA2-PSK and WPA-PSK/ WPA2-PSK authentication
mode, the encryption type supports TKIP, AES and TKIP/AES.
WPS Default
Key Index
Shows the WEP default key (1~4).
WPS
Key(ASCII)
Shows the WPS security keys (ASCII). The key can be used to ensure the security
of the wireless network.
AP PIN
Here shows the AP’s PIN code (Personal Identification Number) that the enrollee
should enter the registrar’s PIN code to make a connection.
Reset OOB
Reset WPS AP to the OOB (out-of-box) configuration.
WPS Process
WPS mode
PIN: Personal Identification Number. Select PIN then click Apply to make a
WPS connection.
PBC: Push Button Communication. Select PBC then click Apply to make a
WPS connection.
PIN
Personal Identification Number. Input Enrollee’s Pin Code to AP-Registrar.
WPS Status
Here shows the current status of the WPS. If there is connection the status
shows WSC Success, otherwise, the status shows Idle.
S
S
t
t
a
a
t
t
i
i
o
o
n
n
L
L
i
i
s
s
t
t
Here shows the station information that connected with the Wireless Portable Router.
