Connections
RJ11 Configuration
1�3 RJ11 Configuration
Some inverter manufacturers use RJ11 jacks on their units.
The pin assignments are manufacturer-specific.
Connect the RS485/422 B and/or the RS485 interface of the Solar-Log
TM
in accordance with the de-
scription on the particular inverter.
Refer to the following document for the numbering of the pins for the RJ45 connection.

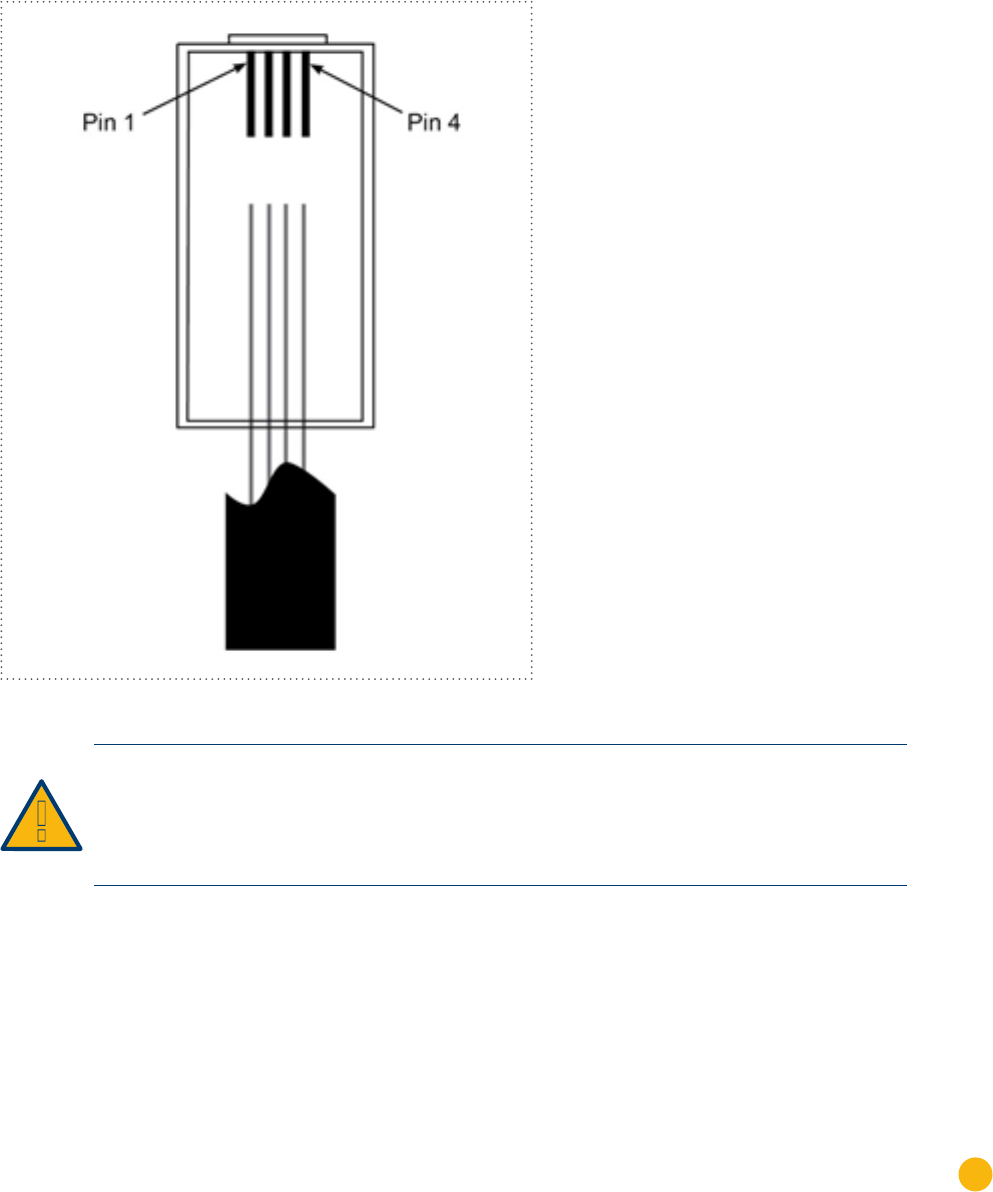

Figure 2: RJ11 plug pin assignments
Caution
Risk of damage to the unit!
The Solar-Log™ has an RJ45 socket, which must never be connected to the RJ11 socket on
the inverter.
► Only connect inverters via the RS485/422 Solar-Log™ interface(s)�
