MCP4821/MCP4822
DS21953A-page 8 © 2005 Microchip Technology Inc.
2.0 TYPICAL PERFORMANCE CURVES
Note: Unless otherwise indicated, T
A
= +25°C, V
DD
= 5V, AV
SS
= 0V, V
REF
= 2.048V, Gain = 2, R
L
= 5 kΩ, C
L
= 100 pF.

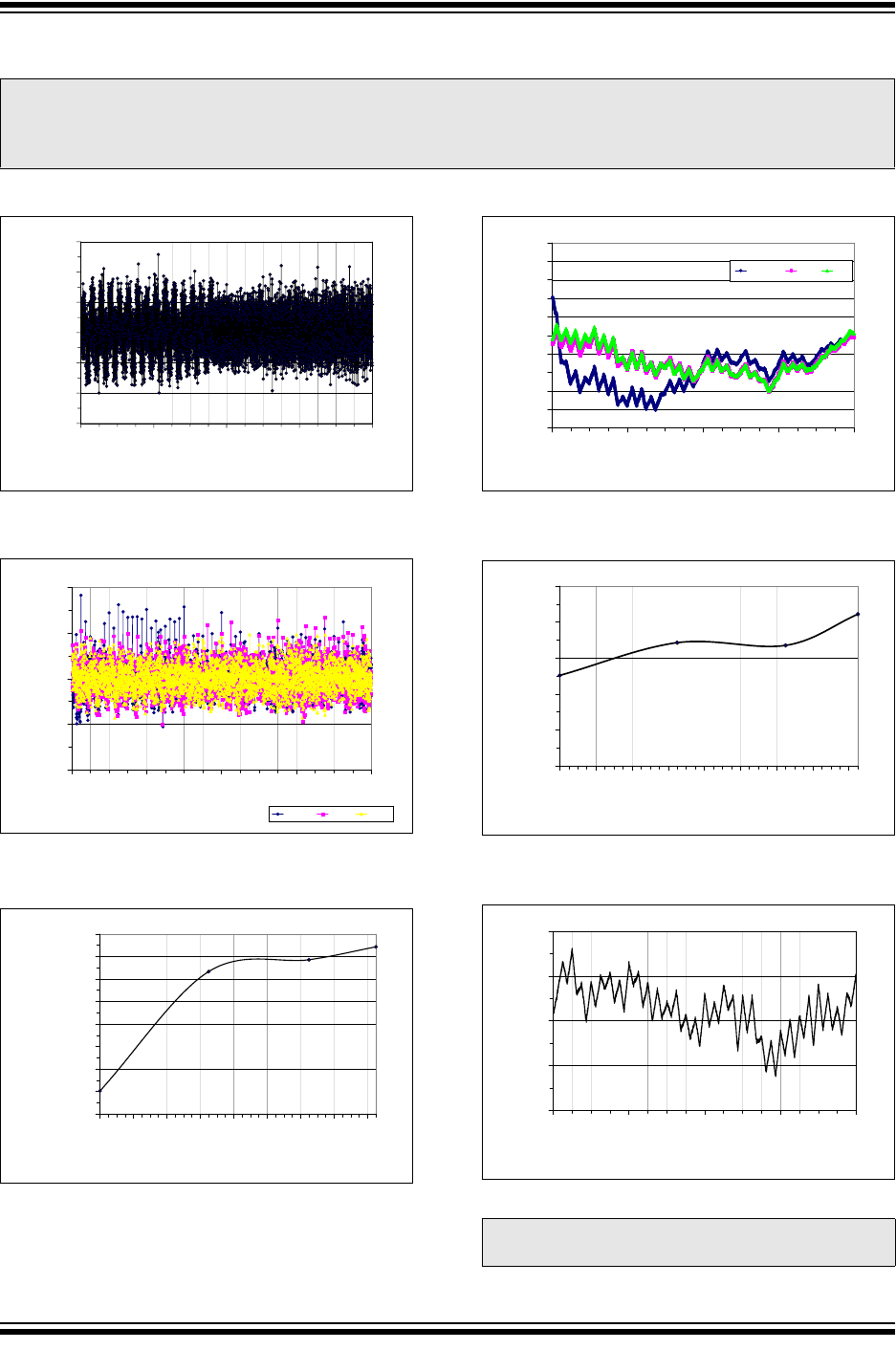

FIGURE 2-1: DNL vs. Code.
FIGURE 2-2: DNL vs. Code and Ambient
Temperature.
FIGURE 2-3: Absolute DNL vs. Ambient
Temperature.
FIGURE 2-4: INL vs. Code and Ambient
Temperature.
FIGURE 2-5: Absolute INL vs. Ambient
Temperature.
FIGURE 2-6: INL vs. Code.
Note: The graphs and tables provided following this note are a statistical summary based on a limited number of
samples and are provided for informational purposes only. The performance characteristics listed herein
are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified
operating range (e.g., outside specified power supply range) and therefore outside the warranted range.
-0.3
-0.2
-0.1
0
0.1
0.2
0.3
0 1024 2048 3072 4096
Code (Decimal)
DNL (LSB)
-0.2
-0.1
0
0.1
0.2
0 1024 2048 3072 4096
Code (Decimal)
DNL (LSB)
125C 85C 25C
0.075
0.0752
0.0754
0.0756
0.0758
0.076
0.0762
0.0764
0.0766
-40 -20 0 20 40 60 80 100 120
Ambient Temperature (ºC)
Absolute DNL (LSB)
Note: Single device graph for illustration of 64
code effect.
-5
-4
-3
-2
-1
0
1
2
3
4
5
0 1024 2048 3072 4096
Code (Decimal)
INL (LSB)
125C 85 25
Ambient Temperature
0
0.5
1
1.5
2
2.5
-40 -20 0 20 40 60 80 100 120
Ambient Temperature (ºC)
Absolute INL (LSB)
-6
-4
-2
0
2
0 1024 2048 3072 4096
Code (Decimal)
INL (LSB)
