MCP4821/MCP4822
Note: Unless otherwise indicated, T
A
= +25°C, V
DD
= 5V, AV
SS
= 0V, V
REF
= 2.048V, Gain = 2, R
L
= 5 kΩ, C
L
= 100 pF.

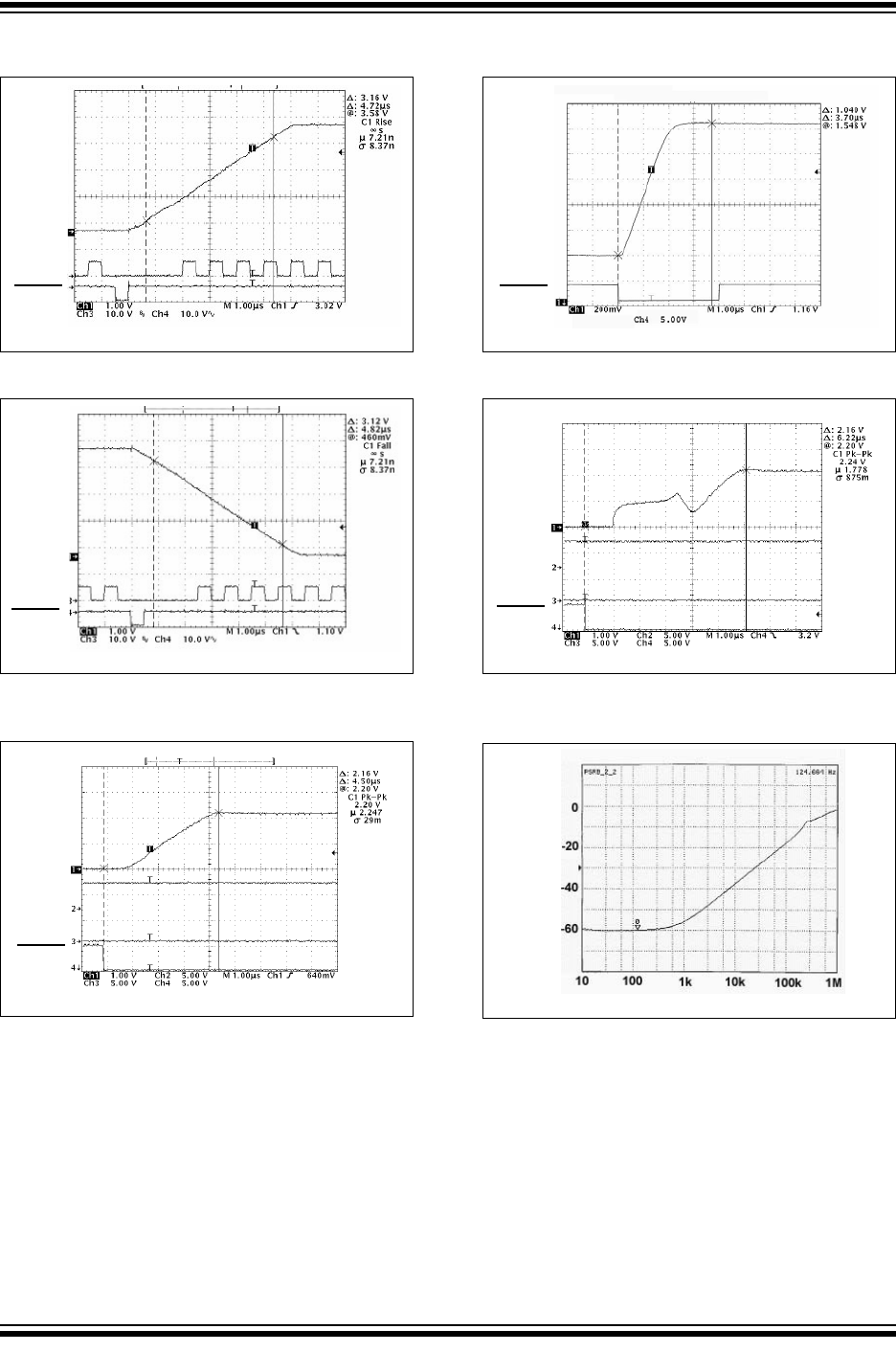

FIGURE 2-28: V
OUT
Rise Time 100%.
FIGURE 2-29: V
OUT
Fall Time.
FIGURE 2-30: V
OUT
Rise Time 50%.
FIGURE 2-31: V
OUT
Rise Time 25% - 75%.
FIGURE 2-32: V
OUT
Rise Time Exit
Shutdown.
FIGURE 2-33: PSRR vs. Frequency.
V
OUT
SCK
LDAC
Time (1 µs/div)
V
OUT
SCK
LDAC
Time (1 µs/div)
V
OUT
SCK
LDAC
Time (1 µs/div)
Time (1 µs/div)
V
OUT
LDAC
Time (1 µs/div)
V
OUT
SCK
LDAC
Ripple Rejection (dB)
Frequency (Hz)
