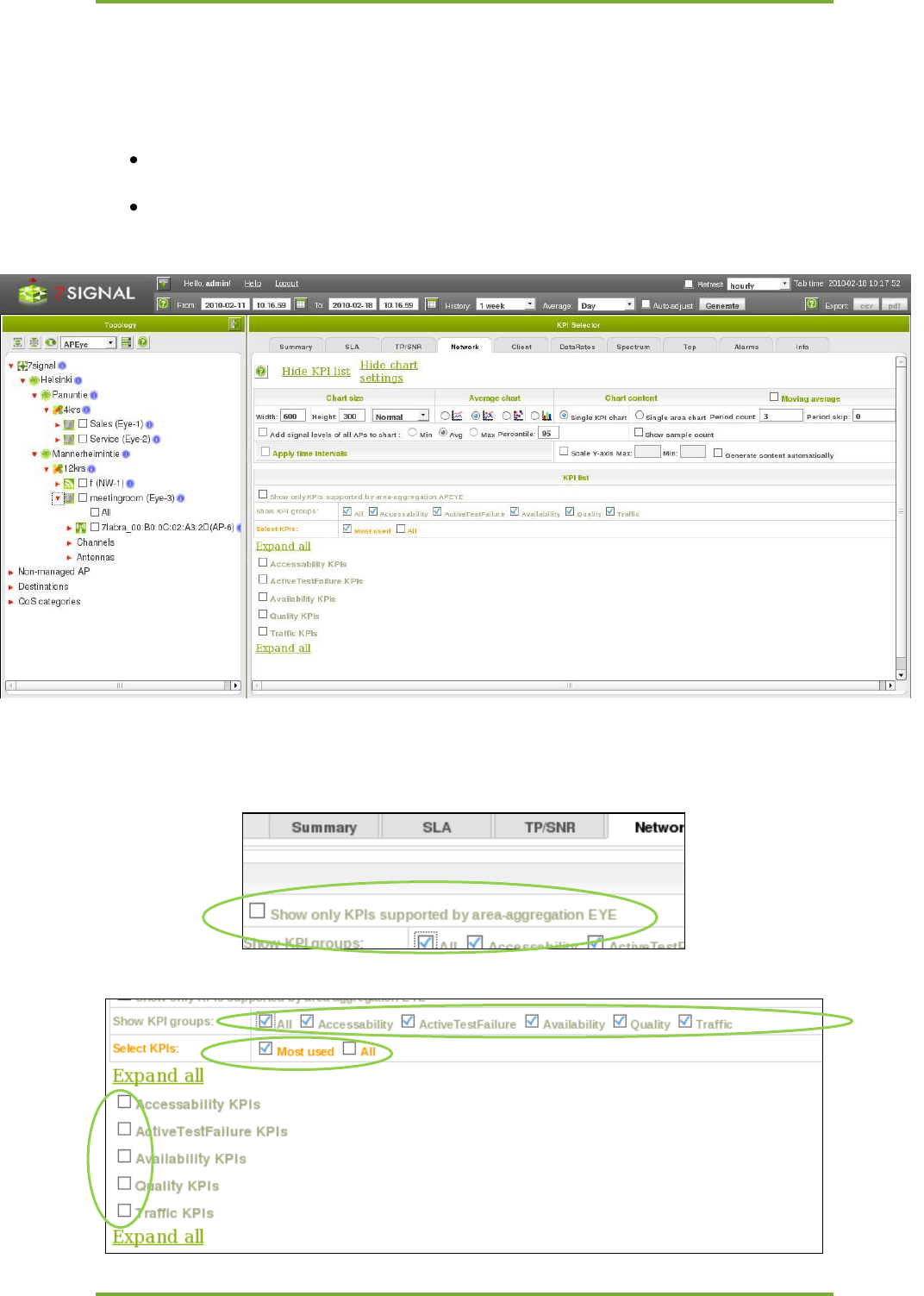

7 NETWORK PERFORMANCE INDICATROS
The KPIs in the Network tab are divided into four groups: Accessibility, Availability, Quality,
Volume and Active test failures.
Apply time intervals – You can limit the time of day, from which the measurements are
included. F.ex. set time interval to 7:00 - 18:00 to ignore the results from night time.
Scale Y-axis – You can set the minimum and maximum values of the y-axis to be the
same in all of the charts.
Active controls in the tab pane
Selections in other panes affect KPI lists and other elements in the tab pane.
Aggregation selection in the Topology pane changes the aggregation-based KPI listing function.
