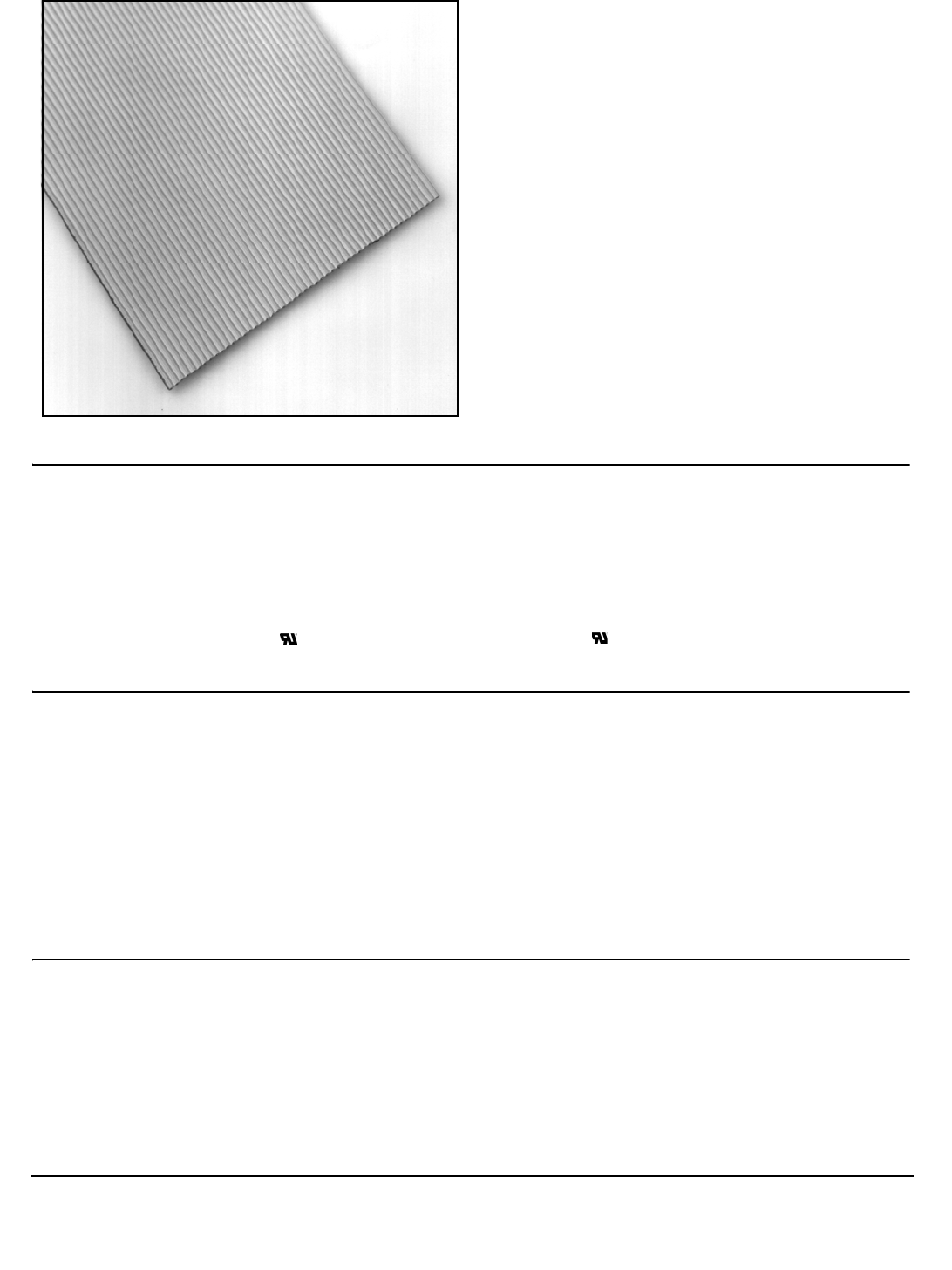

3M™ Round Conductor Flat Cable
.033″ 30 AWG Stranded, PVC 3849 Series
Physical
Electrical
Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between signal conductors within a pair.
Environmental
"RoHS compliant" means that the product or part does not contain any of the following substances in excess of the following maximum concentration values
in any homogeneous material, unless the substance is in an application that is exempt under RoHS: (a) 0.1% (by weight) for lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers; or (b) 0.01% (by weight) for cadmium. Unless otherwise stated by 3M in writing,
this information represents 3M's knowledge and belief based upon information provided by third party suppliers to 3M. Contain decaBDE. Compliant per
EU Commission Decision 2005/17/EC, Annex Item 9a - Exemption for decaBDE in Polymeric Applications.
Insulation
Material:
Polyvinyl Chloride (PVC)
Color:
Gray
Marking:
Standard:
None
CSA Option:
AWM 2651 105C 300V VW1 3M NU C AWM IA 105C 300V FT1 EU <50V
Conductors:
30 AWG, 7 x 38 AWG [ 7 x ø 0.102 ] Tinned Stranded Copper
Voltage Rating:
USA: 300V Canada: 300V EU: <50V
Insulation Resistance:
(Primary Cable)> 1 × 10
10
Ω/10 ft. [ 3m ]
Unbalanced Balanced
Characteristic Impedance:
89 Ω 144 Ω
Capacitance:
17.5 pF/ft. [ 57.4 pF/m ] 10.5 pF/ft [ 34.5 pF/m ]
Inductance:
0.14 μH/ft. [ 0.46 μH/m ] 0.22 μΗ/ft [ 0.72 μΗ/m ]
Propagation Delay:
1.56 ns/ft [ 5.12 ns/m ] 1.51 ns/ft [ 4.95 ns/m ]
Velocity of Propagation:
65% 67%
Temperature Rating:
-20°C to +105°C
Flammability Rating:
USA:VW-1 Canada:FT1
• 30 AWG stranded wire on .0333 inch centers
permits termination to all three rows in DIN
connectors.
• Stranded wire provides flexibility and extended
product life.
• Zippable for branching or discrete termination
• RoHS* compliant
TS-0573-10
Sheet 1 of 2
Date Modified: November 14, 2006
UL File No.: E42769, Style No.: 2651
