Instant Replay Owner’s Manual page 15
CHAPTER TWO – The Rear Panel

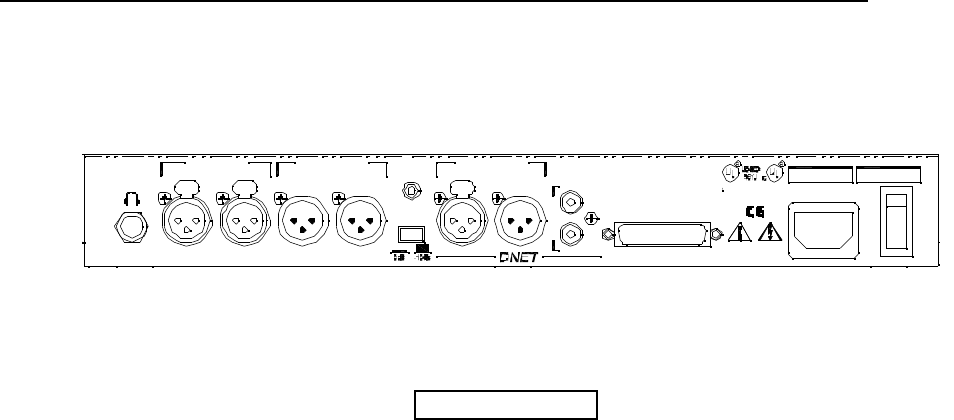

INSTANT REPLAY REAR PANEL
ELECTRICAL POWER
CAUTION!
CONNECT THIS PRODUCT ONLY TO AN AC POWER SOURCE OF THE SAME VOLTAGE
AND FREQUENCY INDICATED ON THE REAR PANEL. THE PRODUCT IS SUPPLIED WITH
A DETACHABLE IEC TYPE AC LINE CORD APPROPRIATE TO THE COUNTRY TO WHICH
THE UNIT WAS ORIGINALLY DELIVERED. CHECK TO SEE THAT IT MATCHES THE
ELECTRICAL OUTLET YOU WILL BE USING.
Power Switch
The POWER SWITCH is located next to the AC POWER INPUT on the rear of the product.
Fuses
The fuses in this product are not user replaceable. Failure of a fuse is an indication of other
component failure, and will require service by a qualified repair technician. Contact 360 Systems,
or your 360 Systems distributor.
ANALOG AUDIO CONNECTIONS
Analog Audio Inputs
The ANALOG INPUTS are a pair of female XLR-3 connectors marked LEFT and RIGHT. The inputs
are electronically balanced, with an impedance of 40k ohms. With the INPUT LEVEL controls up
full, a 6.75dBu tone will produce a full scale output, approximately 15dBu with the OUTPUT
ATTENUATOR in the –10 position and 25 dBu in the 0 position.
