Description Page 39 of
378
ITG Trunk 2.0 ISDN Signaling Link (ISL) Description, Installation and Operation
Faceplate indicators, controls, and interfaces
The ITG ISL Trunk card has a double width faceplate using the shortened
lock latches as shown in Figure 5.

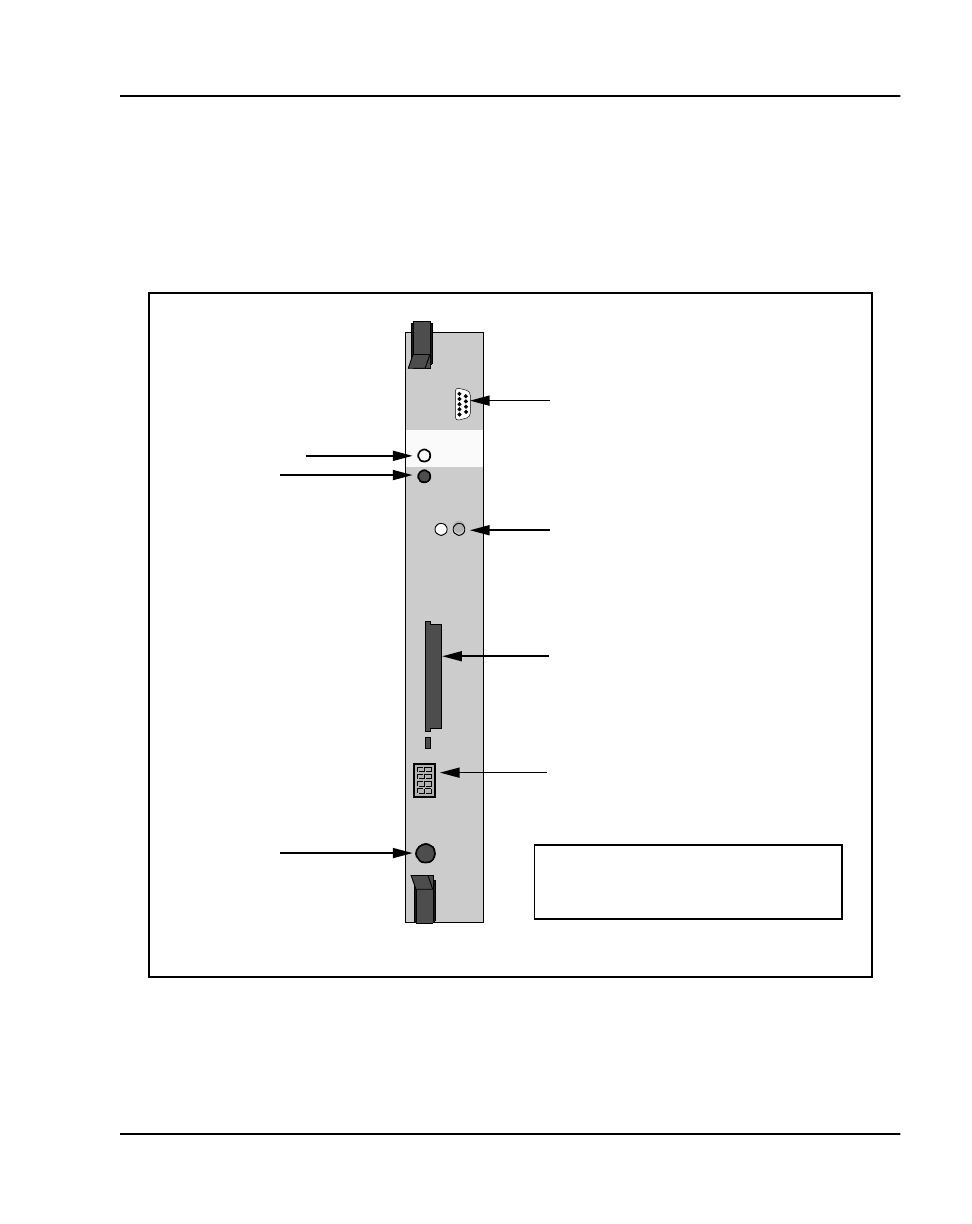

Figure 5
ITG ISL Trunk card (NT0961AA)
ITG
NWK
NT0966AA
NWK
Status
Reset
Maint
Port
A:
553-9150
Ethernet Voice Port
Card Status LED
Ethernet LEDs
Reset Switch
Type III PCMCIA slot
(ATA Drive A:)
Four-character LED-based
Matrix Maintenance Display
RS-232
Maintenance Port
Inboard:
- Type III PCMCIA slot (ATA Drive B:)
- Onboard Flash Drive C:
