Appendix A: Cable description and NT8D81BA cable replacement
553-3001-202 Standard 1.00 April 2000

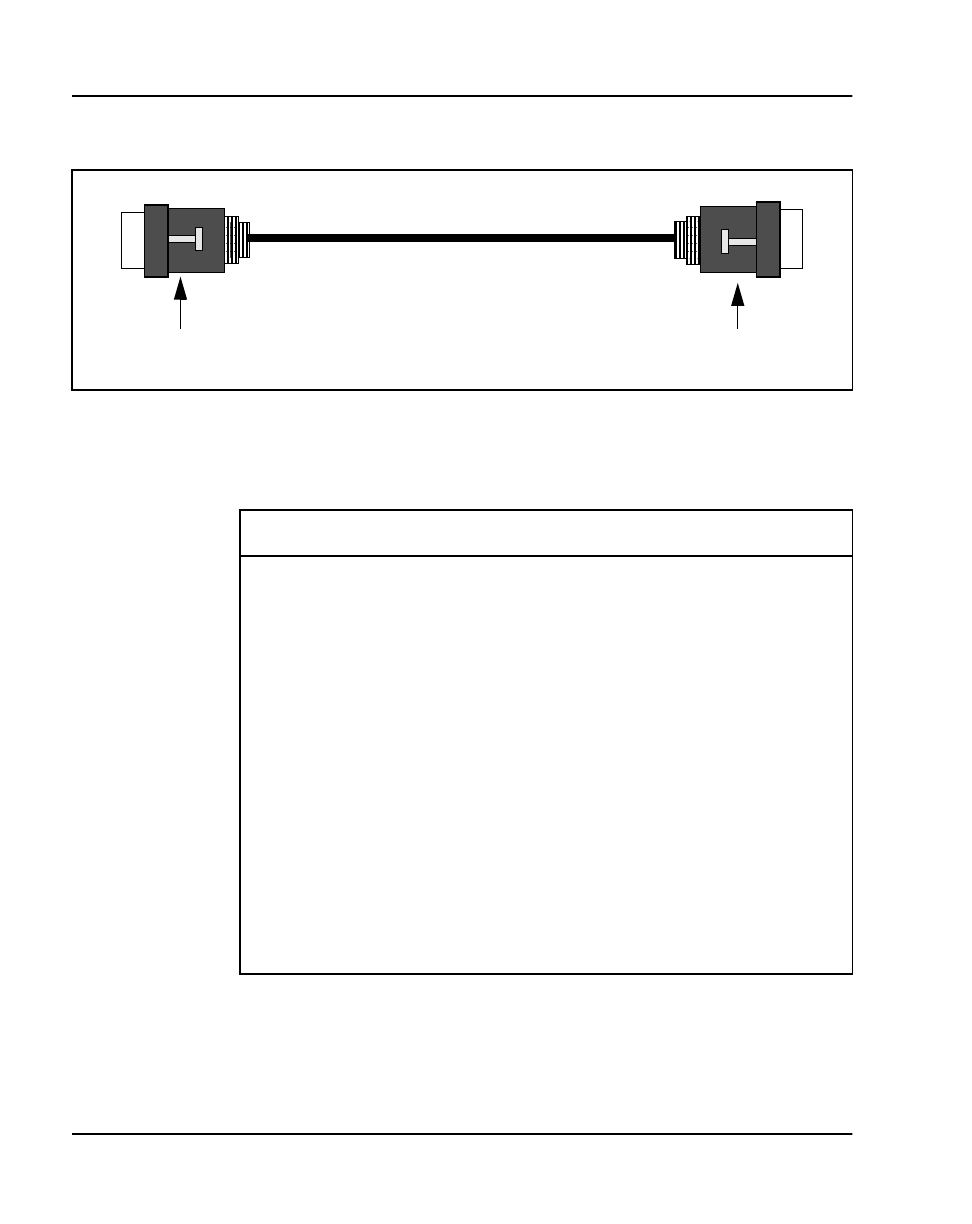

Figure 63
NTMF04BA MSDL extension cable
Table 62
NTMF04BA MSDL extension cable connections
P1 - Male P2 - Female Color Signal
P1-2 P2-2 Black SDA+
P1-10 P2-10 Red SDB-
P1-9 P2-9 Black STA+
P1-11 P2-11 White STB-
P1-4 P2-4 Black RDA+
P1-12 P2-12 Green RDB-
P1-5 P2-5 Black RTA+
P1-13 P2-13 Blue RTB-
P1-8 P2-8 Black FR
P1-15 P2-15 Yellow TR
P1-1 P2-1 Black SIG GRND
15 way Male D-Sub 15 way Female D-Sub
