Appendix A: Cable description and NT8D81BA cable replacement
553-3001-202 Standard 1.00 April 2000
NTCW84KA E-LAN, T-LAN, DCH & Serial cable
The NTCW84KA cable connects the I/O connector on Option 11 or Large
System to the ethernet management and telephony voice ports with one
RS232 port and D-channel signalling. The DCH serial I/O port has a 15-pin
male D-type connector to connect to the MSDL cable. On Large Systems, the
NT8D81AA cable connects all 24 tip and ring pair to the I/O panel (see
Figure 59 and Table 58.)

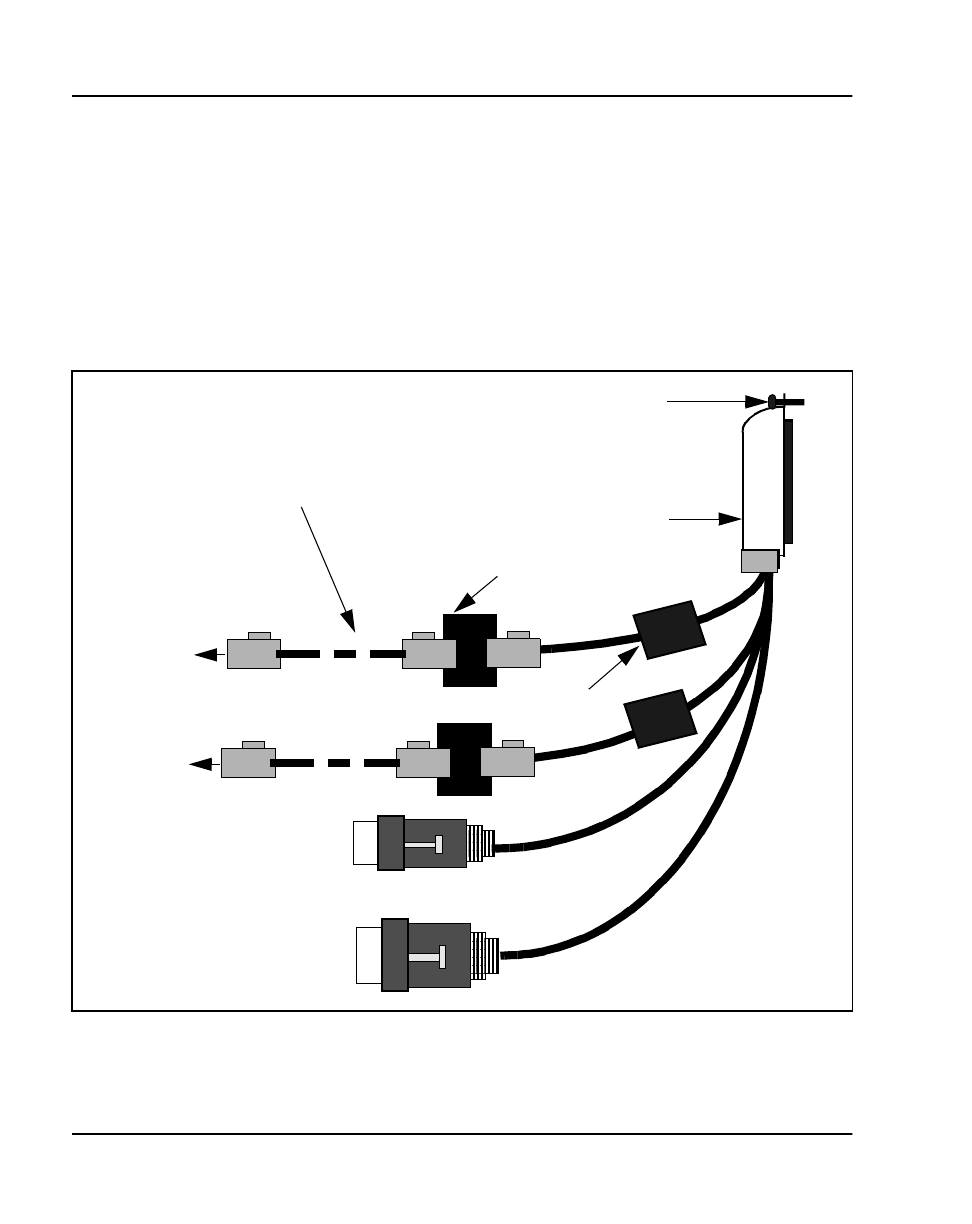

Figure 59
NTCW84KA E-LAN, T-LAN, DCH and serial cable
Shielded RJ-45 Cable
Mountin
g
Screw
Shielded 25-Pair
Matin
g
Coupler
Shielded RJ45
Amphenol Connector
To Hub
9 Pin D-Sub
Female
Ferrite
To Hub
15 Pin D-Sub
Female
