Description
553-3001-202 Standard 1.00 April 2000
Each DCHIP ITG Trunk card can be associated with up to 382 trunks. The
trunks reside on 24-port ITG ISL Trunk cards. This creates a functional
grouping of trunk cards with the DCHIP ITG Trunk card providing the DCH
connectivity. If more than 382 trunks are required, additional DCHIP ITG
Trunk card groups are configured, each with a maximum of 382 related
trunks. (See Figure 3).

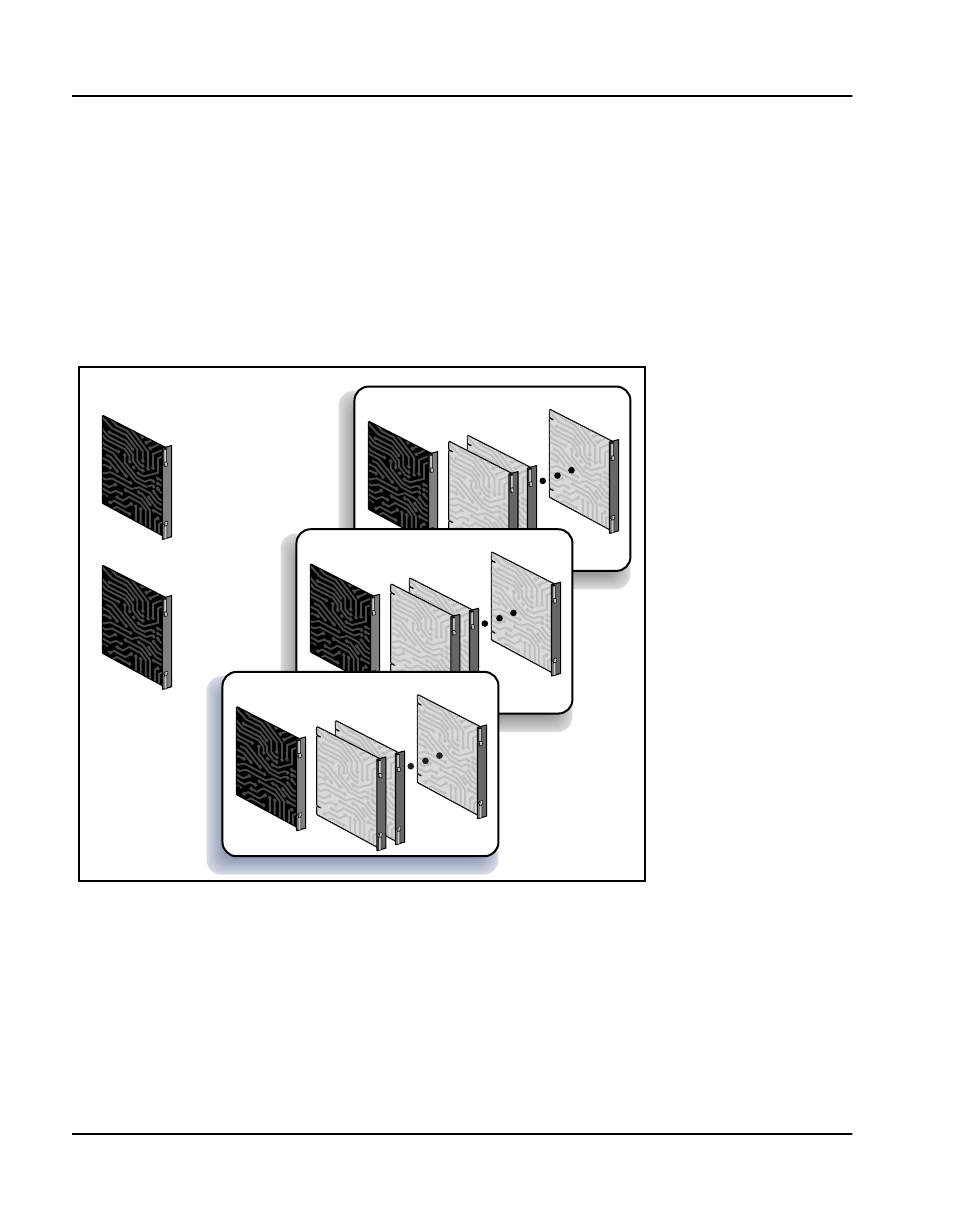

Figure 3
Leader, DCHIP, and trunks in an ITG node
DCHIP + Follower Trunk "group"
DCHIP + Follower Trunk "group"
ITG NODE
DCHIP + Follower Trunk "group"
Active
Leader
Backup
Leader
DCHIP
Follower
DCHIP
Follower
DCHIP
Follower
553-9482
