OA&M using MAT applications Page 261 of
378
ITG Trunk 2.0 ISDN Signaling Link (ISL) Description, Installation and Operation
The following comments apply to the ITG Transmit Options window:
• To transmit Node properties, select any card in the node.
• You must disable ITG cards before transmitting Card Properties.
• You can enable while transmitting all other data. However, you must
reset the card before the new card software begins working.
• To transmit to selected nodes, you must select one card in each node.
• Transmit control shows the status of the operation and any errors which
occur (for example, if a card is not responding).
• The “Cancel transmit” button is disabled until you begin a transmission.
When a transmission begins, the “Close” button is disabled. You must
cancel the active transmission before the window can close.
• The “View last transmit” button displays the results of the last
transmission in the list box. When a transmission is started, the list clears
and the “View last transmit” button is disabled.
• If there are no cards selected, the Synchronization menus are disabled.
• Transmission of card properties fails if the card is not disabled.
When transmitting to an ITG card which is locked by another user, the second
user is provided with the option to override the lock (see Figure 53). The lock
is only checked during the Transmit operation. If multiple cards are involved
in the operation, the second user is only provided with the Locked ITG dialog
box once.
When the OM reports have been scheduled, the locked card is bypassed and
the event is noted in the OM error log and in the PC event log.

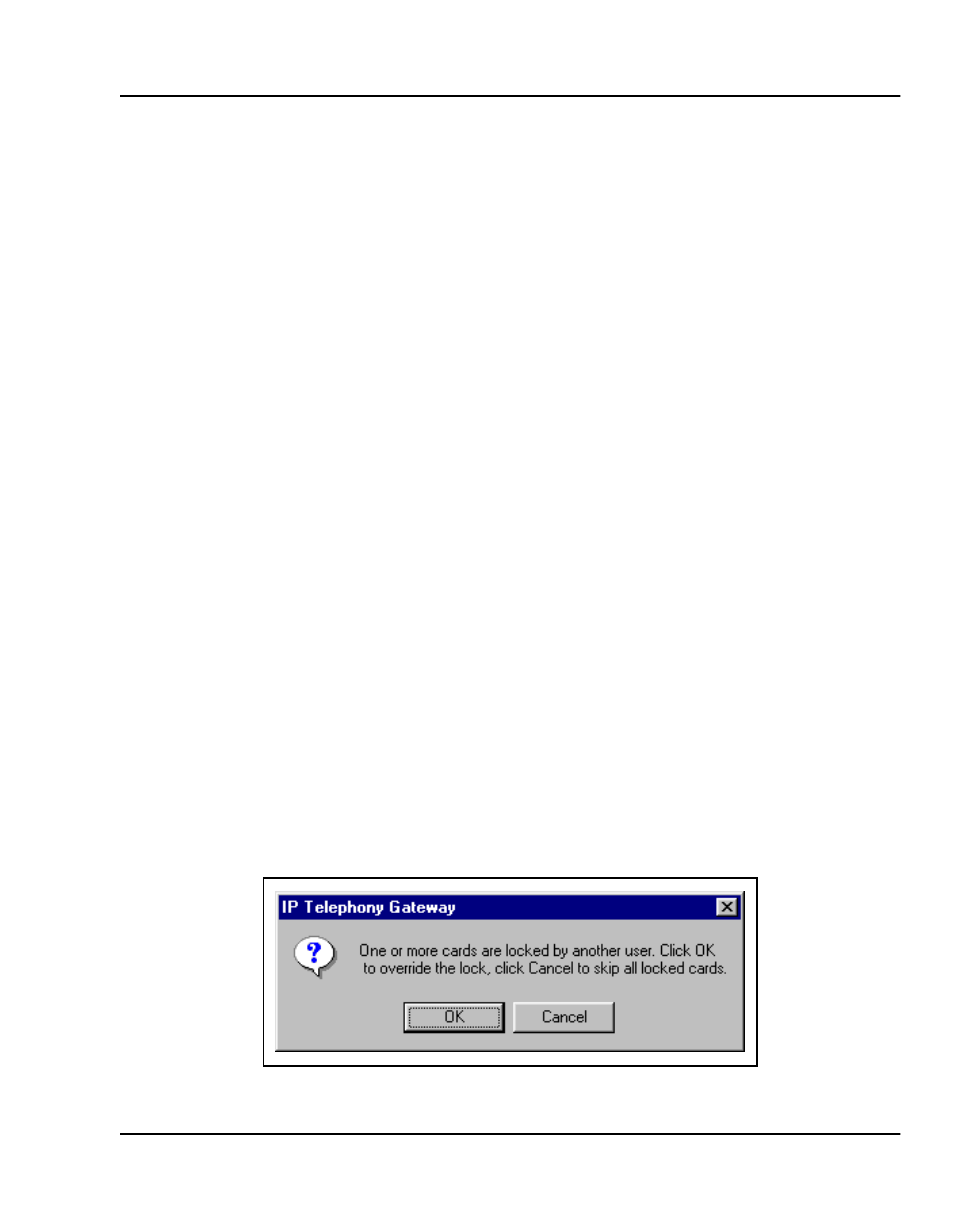

Figure 53
Locked ITG card message
