ITG Engineering Guidelines
553-3001-202 Standard 1.00 April 2000

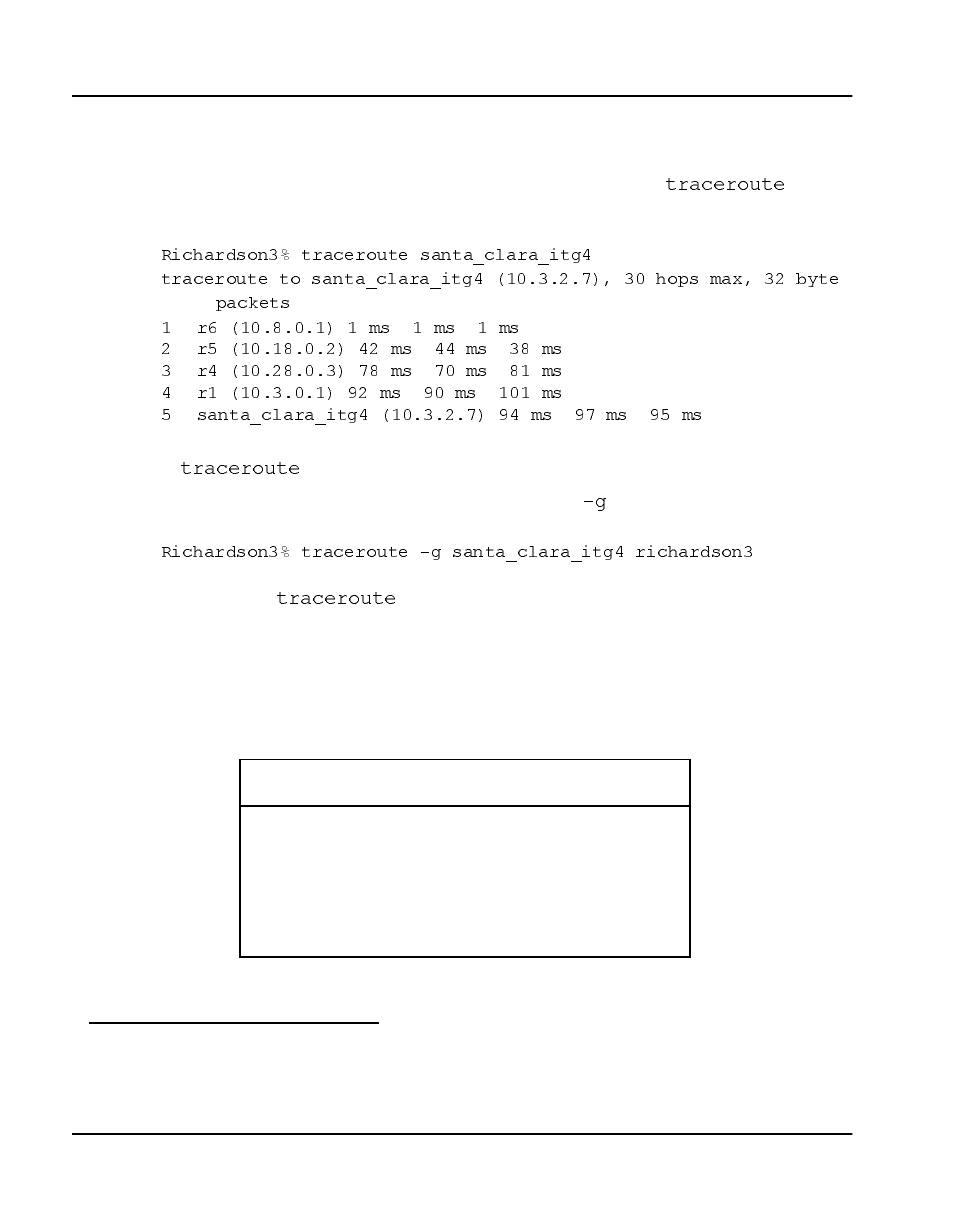

Route Link Traffic Estimation
Routing information for all source-destination pairs needs to be recorded as
part of the network assessment. This is done using the tool, an
example of the output is shown below.
The program can be used to check if routing in the intranet is symmetric
or not for each of the source-destination pairs. Use the loose source routing option
1
,
as shown in the following command syntax:
The program identifies the intranet links that transmit ITG
traffic. For example, if traceroute of four site pairs yield the results shown in
Table 17, then the load of ITG traffic per link can be computed as shown in
Table 18:
1. The option letter can be different depending on vendor implementation
Table 17
Traceroute identification of intranet links
Site pair Intranet route
Santa Clara/Richardson R1-R4-R5-R6
Santa Clara/Ottawa R1-R2
Santa Clara/Tokyo R1-R4-R5-R7
Richardson/Ottawa R2-R3-R5-R6
