User's Manual

The AirHed lever is operated by sliding the
lever (a) towards you and opening the lever
(b) by 180 degrees. To lock, pull the lever back
to it’s original position.
To change the orientation from right to left-
handed and vice versa, remove the plate and
move the lever (b) into a 90-degree position.
Push in point (c), in doing this you will release
the lever enabling you to rotate the lever by
180-degrees and change its orientation.

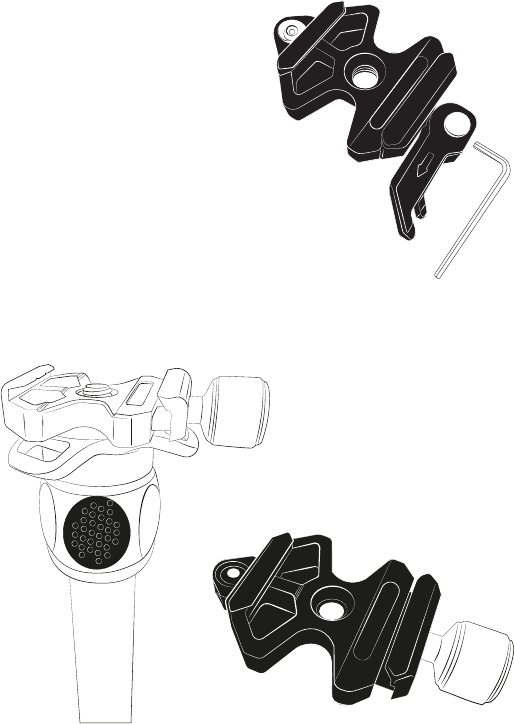

Prior to its rst use, the lever clamp may need
to go through an easy set up process.This
is because we want our products to be as
cross compatible as they can be, in this case,
being suitable for whatever release plate you
choose. Simply open the clamp (as previously
shown) insert your plate of choice in, then
close the clamp using the lever. Now with the
provided Hex Key tighten or losen the clamp
so your plate is secure, make sure you don’t
over-tighten as this may make opening or
closing the lever difcult.
AirHed Pro Lever
a
b
Additional Clamp Function
Both Pro-Lever and Pro-Clamps can
be detached from the ball head and
mounted directly to the tripod canopy.
This is particularly useful as a quick release
mechanism for the detachable legs.
In the centre of the clamp is a hex screw
(a). Undo this with the tool provided. Once
removed, the 3/8” female thread (b) will
be visible. This can be screwed down onto
any 3/8” threaded device.
a
b
c
